Desktop Split Fiber Laser Engraver for Metal
Suitable for all kinds of metal materials, such as.stainless steel, iron, copper, aluminum, silver, etcas well as some non-metallic materials, such as PC, ABS and PVC ABS, etc.
Description
Desktop Split Fiber Laser Engraving Machine Introduction
The Desktop Split Fiber Laser Engraver for Metal is a high-performance marking machine designed for precision engraving, etching, and marking on various metal surfaces.
This machine features a split design, where the laser source and control unit are separate from the marking head, making it more flexible and adaptable to different work environments.
It is ideal for industrial, commercial, and personal use, offering high speed, extreme accuracy, and permanent marking quality.
The machine is widely used for branding, traceability, and customization of metal and certain non-metal materials.
Suitable for all kinds of metal materials, such as.stainless steel, iron, copper, aluminum, silver, etc as well as some non-metallic materials, such as PC, ABS and PVC ABS, etc.
Fiber Laser Engraving Machine Application
● Laser marking /printing /engraving on all metal material and some plastic material.
● This fiber laser marking machine is suitable for marking custom logo, text,symbol, pattern, bar-code, 2D code, serial number, etc.
● Higher laser power also suitable for cutting metals.
Fiber Laser Engraving Machine Features
Split Design
The control box and laser source are separate from the marking head, making it easier to integrate into different workstations. Suitable for larger or irregularly shaped objects that require more flexible laser positioning.
Fiber Laser Technology
Available in different power options.Uses a JPT, Raycus, IPG or Maxphotonics fiber laser source with a 100,000+ hour lifespan.
Delivers consistent marking quality with no fading or wear over time.
High Precision Marking
Uses advanced galvo scanning technology for ultra-fast and highly precise engraving.
Marking accuracy can reach ±0.01mm, ensuring sharp, detailed engravings.
Versatile Material Compatibility
Works with all metals, including stainless steel, aluminum, gold, silver, copper, titanium, brass, and coated metals.
Can also engrave some plastics (ABS, PVC, PC), ceramics, and leather with proper settings.
User-Friendly Interface
Supports EzCad software, compatible with Windows systems.Accepts various file formats: AI, DXF, BMP, JPG, PLT, SVG, etc.
Can work with AutoCAD, CorelDRAW, Photoshop, and other design software.
Low Maintenance
No consumables required, unlike CO₂ laser engravers.
Air-cooled system, eliminating the need for water cooling and reducing operational costs.
Fiber Laser Engraving Machine Description
Main Parts
Fiber Laser source.
Original Raycus/JPT/ IPG/Max optional.
Stable working lifetime up to 100,000+ hours.
High Speed galvo scanner laser head.
Original Scanlab/sino-galvo/JCZ/ZBTK optional.
Fast speed and high accuracy.
F-theta lens
Best brand "Wavelength"
Working area 50*50mm-300*300mm optional
Beijing JCZEZCAD2 control card. Genuine EzCAD control system compatible with windows system.
User-friendly interface and high stability.
Easy operation.
Double red pointers.
It can help user to adjust focal
length more convenient and easier.
Meanwell power supply with high precision.
Stand column height is 50cm.
60-1200cm can be customized.
Standard manual, the motorized or autofocus
can be customized.
Aluminum working table.
Flat and smooth compact structure.
Flexible processing
Control buttons
Emergency stop:Press it when meets errors,the machine will stop working immediately.
Key switch:Using key switch to control the power of the machine.
Humanized control system, easy to operate, safe and convenient,dust proof design.
JCZ EZCAD2 software.
Latest Software 2.14.16 version.
Compatible with multiple formats and vector file formats, simple operation.
Many different languages offered.
Parameters
| Model | Desktop Split Fiber Laser Engraver |
|---|---|
| Laser Power | 20W / 30W / 50W / 100W |
| Laser Source | JPT / Raycus / Maxphotonics |
| Wavelength | 1064nm |
| Marking Area | Standard: 110mm x 110mm (Optional: 150x150mm, 200x200mm, 300x300mm) |
| Marking Speed | ≤7000mm/s |
| Minimum Line Width | 0.01mm |
| Minimum Character Size | 0.2mm |
| Cooling System | Air Cooling |
| Software | EzCad (Compatible with AutoCAD, CorelDRAW, Photoshop) |
| Supported Formats | AI, DXF, BMP, JPG, PLT, SVG, etc. |

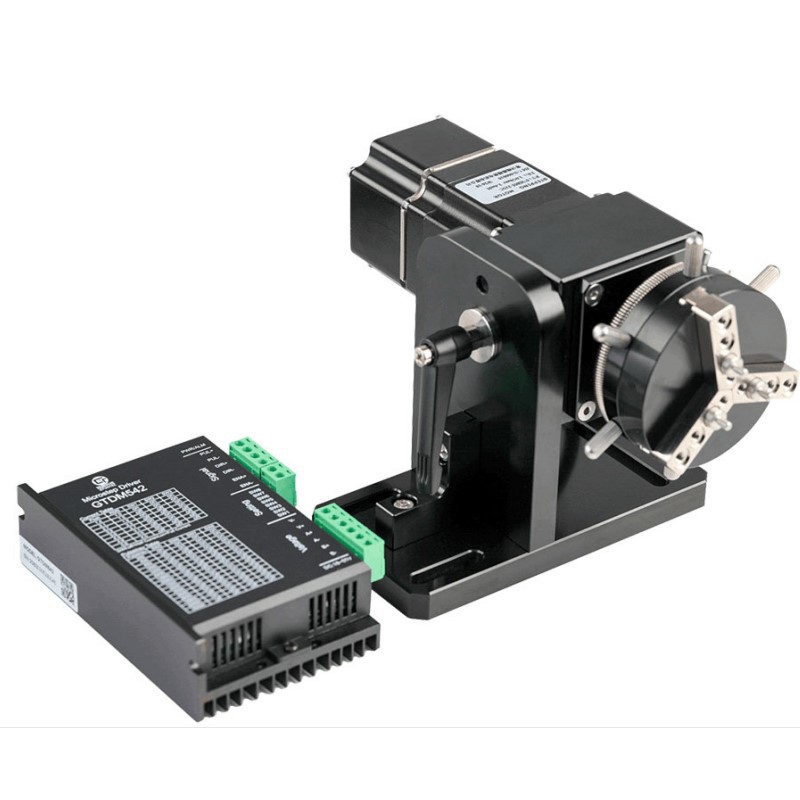

| Rotary Axis | Optional |
| Voltage | AC110V/220V, 50/60Hz |
| Lifespan | 100,000+ hours |
We have advantages in customization and also supply a lot optional accessories. please send inquiry to get more details and videos .
More Models
Portable Mobile Type
Portable Mini Type
Desktop Split Type
Table Type
Desktop Enclosed Type
Full Enclosed Type
Online Flying Type
More Customized Types

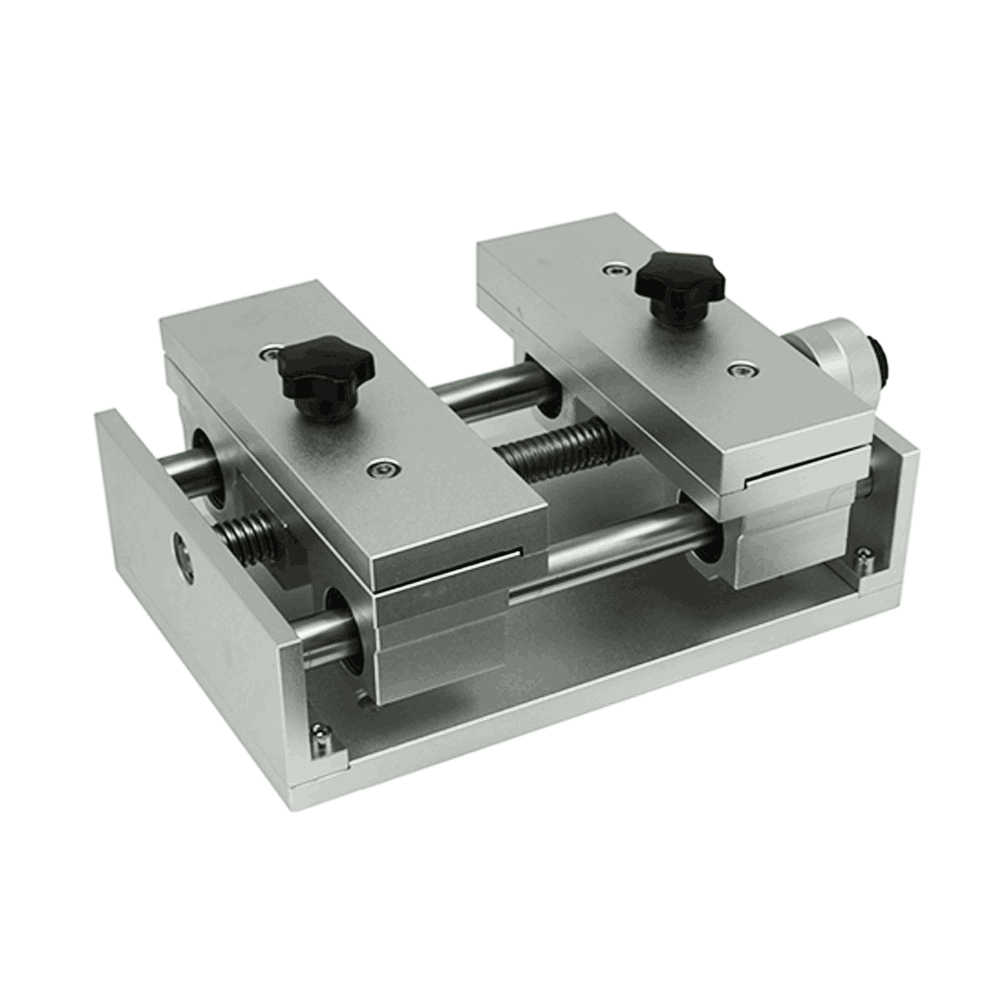

Optional Accessories
Smoke exhaust fan
Fume extractor
Water chiller
Samples:
Packing
FAQ：
Want to learn more? Contact us today for a demo or free sample marking!
Any more questions and details , be free to contact us ~
