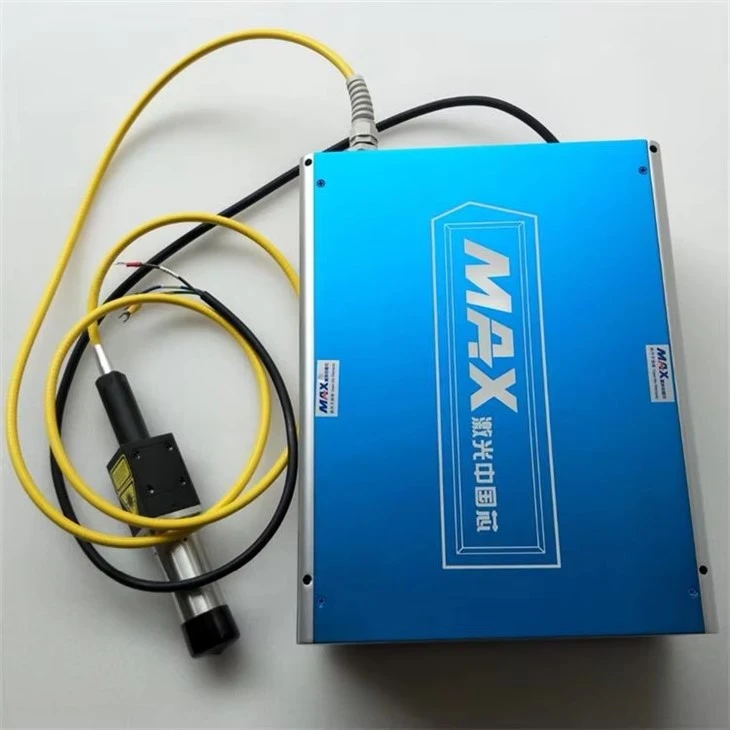

Maxphotonics Fiber Laser Source
Maxphotonics Fiber Laser Source, a high-performance laser generator commonly used in industrial marking and engraving applications
Description
MAX Fiber Laser Source Description
Maxphotonics Fiber Laser Source, a high-performance laser generator commonly used in industrial marking and engraving applications.
The MAX Fiber Laser Source is a cutting-edge laser generator designed for industrial applications such as metal engraving, cutting and marking. Known for its high efficiency, reliability, and superior performance.
Engineered with advanced fiber laser technology, it delivers exceptional beam quality, stability, and efficiency, making it ideal for industrial marking tasks across a wide range of materials.
MAX Fiber Laser Source Applications
- Metals: Stainless steel, aluminum, brass, copper, titanium, gold, and silver.
- Plastics: ABS, PVC, polycarbonate, and other engineering plastics.
- Ceramics: Marking and engraving on coated or uncoated ceramics.
- Other Materials: Coated glass, leather, and certain textiles.
MAX Fiber Laser Source Features
High Beam Quality
Produces a stable and fine laser beam with excellent M² values, ensuring precise and high-resolution markings.
Wide Power Ranges
Available in multiple power outputs, including 20W, 30W, 50W, and 100W, to cater to different marking requirements.
Pulse frequencies ranging from 20 kHz to 200 kHz enable high-speed marking with superior precision.
Compact Design
The compact and lightweight structure facilitates easy integration into laser marking machines and systems.
MAX Fiber Laser Source Parameters
AX Fiber Laser Source Parameters
| Models | MFP-30X | MFP-50X |
| OPTICAL SPECIFICATIONS | ||
| Nominal Power | 24~26W | 44~46W |
| Mode ofOperation | Pulsed | |
| Polarization | Random | |
| Power Tunability | 10 to 100% | |
| Wavelength | 1064±5 nm | |
| Power Stability | ≤5% | |
| Laser Beam Quality M² | 1.1~1.6 | |
| Pulse Energy | 0.75 mJ | 1 mJ |
| Pulse Duration | 100~120ns | 80~110ns |
| Repetition Rate | 30~60 kHz | 45~60 kHz |
| FIBER DELIVERY SYSTEM | ||
| Length | 1.9~3m standard,other lengths optional | |
| Beam Diameter | 6~9mm | |
| Beam Ellipticity | 90% | |
| ELECTRICAL RATINGS | ||
| Supply Voltage | 24 VDC | |
| OTHER SPECIFICATIONS | ||
| Operating Temperature | +10 to+40℃ | |
| Storage Temperature | -10 to+60℃ | |
| Humidity | 10 to 95% | |
| Cooling Method | Air Cooling | |
| Dimension | 345.5×266.2×120 mm | |
| Weight | 12 kg | |
MAX Fiber Laser Source Details
We also supply a lot optional accessories
Fume extractor
Water chiller
FAQ
-
Is the Maxphotonics Fiber Laser suitable for deep engraving?
Yes, higher-power models (e.g., 50W or 100W) are capable of deep engraving on metals and other hard materials, depending on the application and material thickness.
-
Can the laser mark high-contrast images or logos?
Absolutely! The Maxphotonics Fiber Laser Source offers excellent beam quality and precision, allowing it to create high-contrast, detailed images, logos, and text on a variety of surfaces.
-
What kind of software is compatible with this laser source?
Maxphotonics Fiber Laser Sources are compatible with most mainstream laser marking software, such as EZCAD, which allows for user-friendly control and customization.
-
How do I choose the right power level for my application?
The selection of the power level depends on your specific requirements:
20W/30W: Ideal for marking and light engraving.
50W/100W: Best for deep engraving and cutting applications.
If you're unsure, consulting with us freely, will recommend the suitable one for you!
