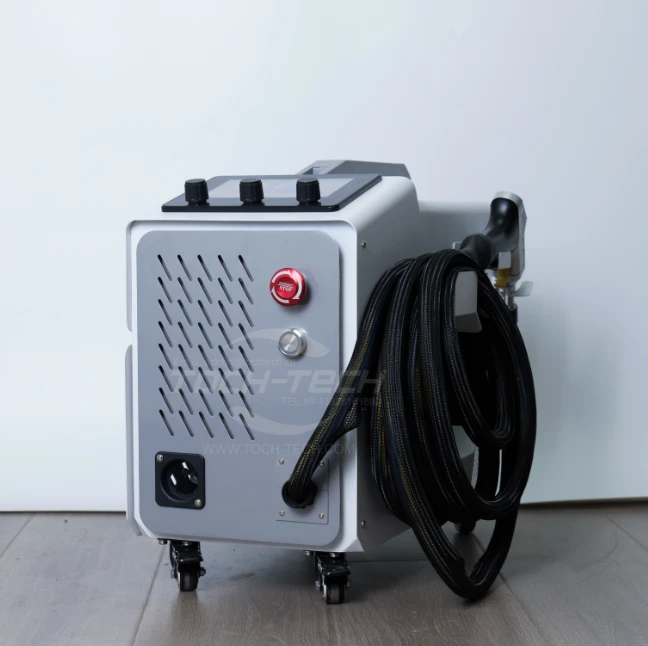

Handheld 500W 800W Mini Laser Welding Machine
The 500W 800W Handheld Fiber Air-cooled Laser Welding Machine with a built‑in wire feeder integrates a high‑power laser source, an air‑cooling system, and a wire feeder into a single unit. It combines high energy efficiency, deep penetration, and stable air cooling for long-term, high-load operation — ideal for metal fabrication and repair across various industries.
Description
Air‑Cooled Handheld 500W 800W Mini Laser Welding Machine
500W/800W Mini Laser Welding Machine
Air‑Cooled Handheld Laser Welding Machine with Built‑in Wire Feeder
The air‑cooled handheld laser welding machine with a built‑in wire feeder integrates a high‑power laser source, an air‑cooling system, and a wire feeder into a single unit. By eliminating the need for an external water chiller and complex piping, it offers unprecedented portability and flexibility compared to traditional water‑cooled systems.
The air cooling handheld laser welding machine combines excellent portability, high welding efficiency, superior weld quality, low running costs, and an easy learning curve into one compact, integrated package.
·20KG lightest weight, portable design.
·-20°C cold-proof, stable from -20°C to 40°C.
·3-knob control for quick and easy operation.
Intelligent and Convenient Control:
Three knobs + intelligent digital display system provide intuitive and visible welding parameters, allowing even beginners to quickly learn and easily adjust parameters.
Rugged and Portable:
High-hardness dual handles + lightweight body design adaptable to various operational scenarios such as mobile maintenance and workshop operations.
Built-in Wire Feeder:
Integrated built-in wire feeder design ensures smooth and jam-free wire feeding, saving space and making operation easier, suitable for all laser welding scenarios.
Efficient and Energy-Efficient:
With low power usage and high conversion efficiency, it consumes less energy than water-cooled welders while delivering superior performance.
Handheld air-cooling laser welder Main applications
Material Applications:
Stainless Steel, Mild Steel, Carbon Steel, Aluminum, Copper, Brass, Bronze, Alloy Steel, Galvanized Steel, Titanium, Nickel Alloys, and more.
Industry Applications:
Manufacturing &Heavy Industry, Shipbuilding, Steel Structure Construction, Bridge Manufacturing,Aerospace, Military& Defense, New energy and Battery Manufacturing, Automotive, Medical Devices,Energy& Power Generation, Electronics, Oil & Gas, Machinery Manufacturing,HVAC (Heating, Ventilation, and Air Conditioning), Railways, and more. The materials and industries abovementioned can benefit from our machine. For cutting solution on specific applications, welcome to contact Us.
Mini laser welding Machine
handheld air-cooling laser welder Specifications
| WorkingVoltage(V) | 1ph AC220V±5% | ||||
| Frequency(Hz) | 50/60 | ||||
| Power output(W) | 500W | 800W | |||
| Fiber Length(m) | 7 | ||||
| Laser Output Head | QBH/QCS | ||||
| Central Wavelength(nm) | 1080±5 | ||||
| Weld Seam Requirements | ≤1.2mm | ||||
| Cooling Method | Air cooling | ||||
| Operating Temperature Range | -20~ +40°C | ||||
| Humidity | ≤70% at 40°C;≤90% at 20°C | ||||
| Shielding Gas | Argon/ Nitrogen | ||||
| Applicable welding materials | Carbon steel, aluminum, galvanized sheet, stainless steel, etc. | ||||
| Machine Dimensions (mm) | 570*345*480 | ||||
| Machine weight (kg) | 19 | 22 | |||
1500W handheld air-cooling laser welder FAQs
Q1: What thickness of material can an air-cooled welding machine weld? Will it be insufficient?
A: For stainless steel/carbon steel, continuous welding thickness between 0.5mm and 2.0mm is recommended; it can occasionally weld 3mm, but it's not suitable for prolonged continuous operation. If your business frequently involves medium to heavy plates, water cooling (2000W or more) is the correct solution.
Q2. What materials can it weld?
A：Mainly used for stainless steel, carbon steel, galvanized steel, aluminum, and copper, especially thin to medium thickness metals.
Q3: How long can it weld continuously? Will it overheat and throttle like a mobile phone?
A: Yes. Air cooling relies on air for heat dissipation. Once the ambient temperature exceeds 35-40℃, the cooling efficiency will drop significantly.
Q4. Is handheld air-cooling laser welder easy to operate?
Yes. The system is user-friendly and suitable for both beginners and experienced operators after basic training.
