4 in 1 SUP 23T Hand-Held Laser Welding Head

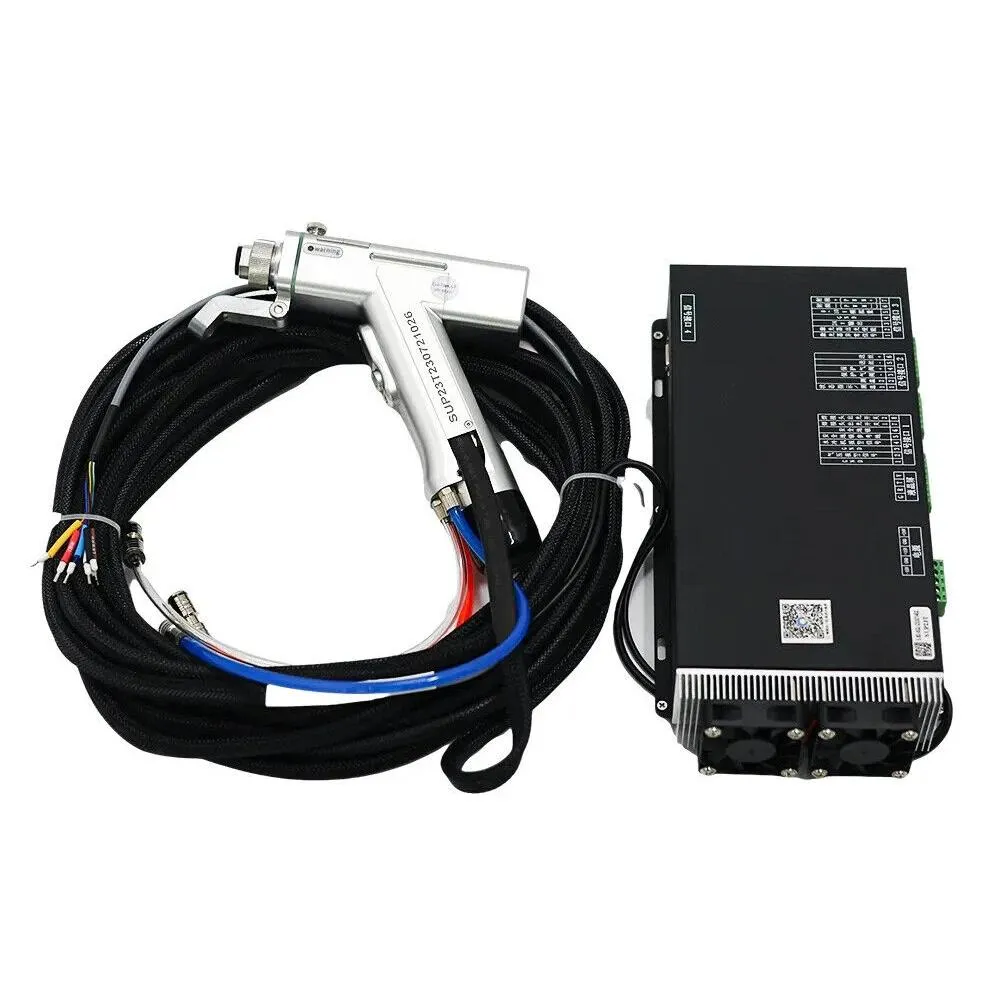

SUP23T is a highly integrated multi-functional laser processing head. Through modular design, it realizes four core functions: laser welding, laser cleaning, laser cutting, and laser drilling, meeting the diversified needs in industrial manufacturing.
Description
Product Introduction
SUP23T is the new-generation four-in-one intelligent laser processing head launched by Chaoqiang Weiye. It integrates four major functions: welding, cleaning, cutting and drilling, adopts modular design, and is compatible with various fiber lasers (such as IPG, Raycus, etc.). It is suitable for high-precision industrial processing, especially for the complex process requirements in aerospace, automotive manufacturing, 3C electronics and other fields.
Technical parameters
| Item | Parameter Details |
| Laser Wavelength | 1064nm |
| Focused Spot Diameter |
Welding: 0.1–0.3mm Cleaning: 2–5mm |
| Working Distance | 150–300mm (adjustable) |
| Maximum Scanning Speed: |
Cleaning: 20m/s Welding: 10m/s |
| Applicable Materials | Stainless steel, aluminum alloy, copper, plated metals, etc. |
| Protection Rating | IP54 (dust and splash-proof) |
|
Weight |
2.8kg (lightweight design) |
Advantages
● Basic features of the product: self-developed control system and structural design, adapt to various welding requirements within 3000W, set multiple safety alarms and state indicator lights, abnormal state instantaneous response. The net weight of 750k is flexible and easy to use.
● The whole machine is more stable: all parameters can be seen, monitor the state of the whole machine in real time, avoid problems in advance, facilitate troubleshooting and troubleshooting, and ensure thestable operation of the hand-held welding head.
●Subversion structure design: the main structure integrated design and processing, greatly reduce the failure rate, and facilitate the later maintenance.
●Controlled parameters and high repeatability. Stable nozzle pressure and lens state, only as the laser power is stable, the process parameters must be repeated, save the adjustment time, improvethe work efficiency.
Product Function
1. Laser Welding Function
Applicable Scenarios: Precision welding, thin-plate butt joints, dissimilar metal welding (e.g., copper-aluminum), automation line integration.
Technical Features:
High-Precision Welding: Adjustable focused spot (0.1–0.3mm) enables micron-level seam control, minimizing heat-affected zones.
Multiple Welding Modes: Supports continuous, pulsed, and oscillating welding to accommodate diverse materials and thicknesses.
Intelligent Parameter Adjustment: Built-in welding expert database automatically matches parameters (power, frequency, pulse width) for uniform, defect-free seams.2. Laser Cleaning FunctionApplicable Scenarios: Metal surface rust removal, paint stripping, oxide layer removal, mold cleaning, cultural relic restoration, etc.
Technical Features:
Non-Contact Cleaning: No physical abrasion, substrate-friendly, eco-friendly (replacing sandblasting/chemical cleaning).
High-Precision Control: Adjustable spot size (2–5mm), supports point/area scanning modes. Cleaning efficiency: 0.5–3m²/h (material-dependent).
Consumable-Free: Requires only compressed air assistance, minimizing operational costs.
3. Laser Cutting Function
Applicable Scenarios: Thin-metal sheet cutting, precision hole drilling, flexible material processing.
Technical Features:
High-Speed & Precision: Cutting speed up to 10m/min (1mm stainless steel), smooth burr-free edges.
Narrow Kerf Design: Kerf width ≤0.1mm for optimal material utilization.
Adaptive Focus Control: Automatic focal length adjustment for materials 0.1–5mm thick.
4. Weld Seam Cleaning Function
Applicable Scenarios: Post-welding residue removal, weld oxidation layer stripping, weld bead refinement.
Technical Features:
Precision Targeting: Selective cleaning of weld areas without damaging surrounding substrates.
High-Efficiency Decontamination: Removes slag, fumes, and oxidation discoloration, restoring metallic luster to welds.
Integrated Process: Seamlessly integrates with welding functions for automated "weld-clean" workflows.
Samples

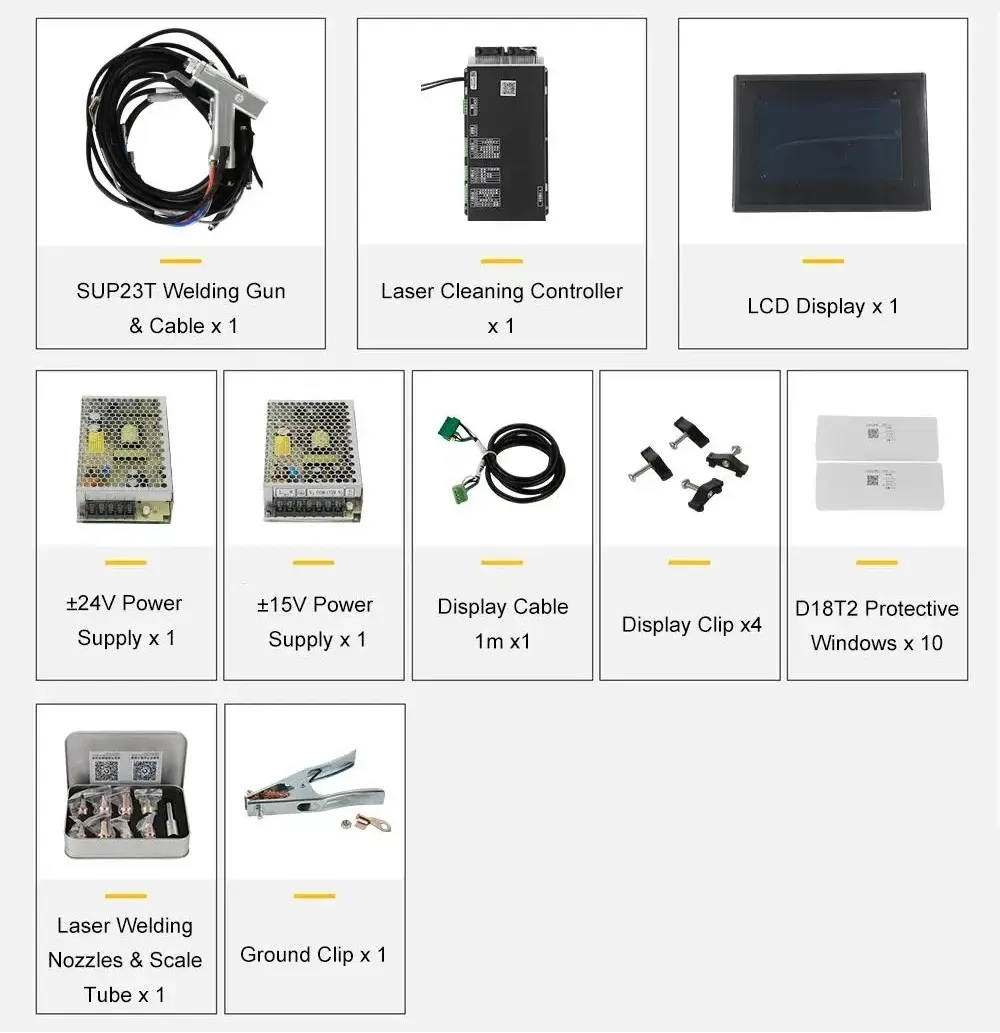

Packing Lits
