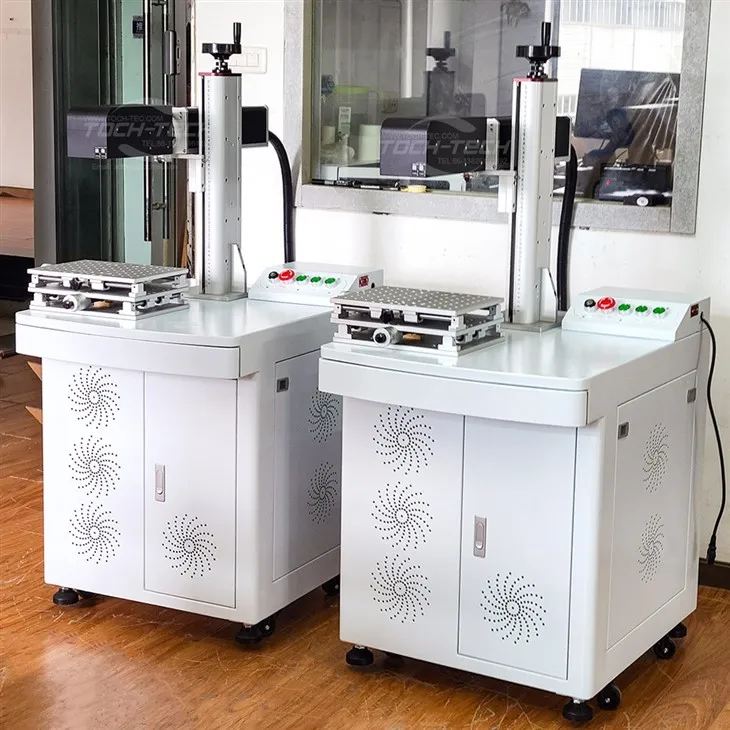

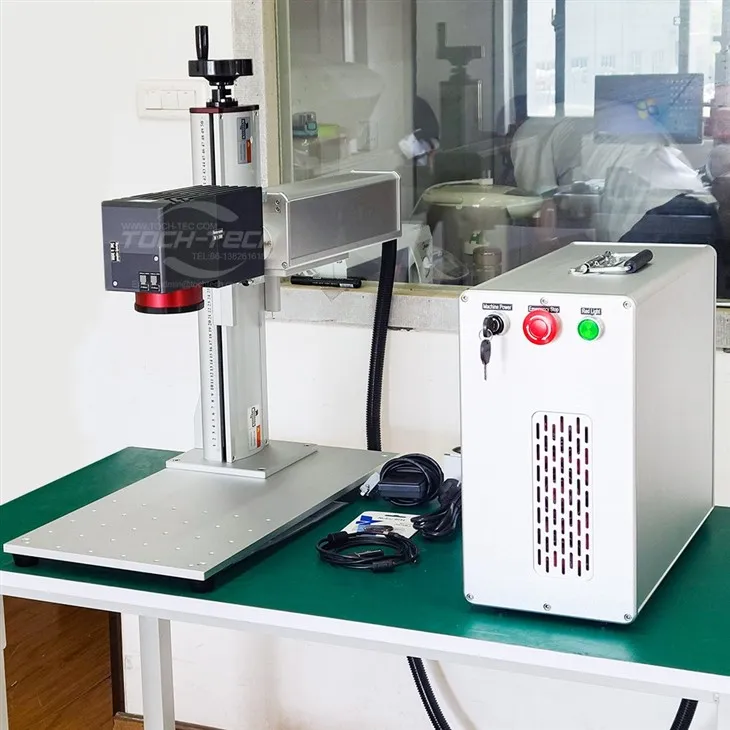

3D Fiber Laser Engraver
A 3D Fiber Laser Engraver is an advanced laser marking and engraving machine designed to perform high-precision engraving on both flat and curved surfaces. This machine utilizes fiber laser technology combined with a dynamic 3D scanning system to achieve deep, intricate, and highly accurate engravings across a wide range of materials and surfaces.
Description
3D Fiber Laser Engraver Introduction
A 3D Fiber Laser Engraver is an advanced laser marking and engraving machine designed to perform high-precision engraving on both flat and curved surfaces.
3D dynamic focus laser marking machine adopt imported core components, with high-speed, high precision 3D galvo, and with our 3D specified software and control system, it can engrave on any curved workpieces in a fine process, there is no off-focus problem.
It allows for precise engraving on flat, curved, inclined, and uneven surfaces without losing focus, ensuring high-quality and consistent results.
2D laser with 2D galvo scanning head and EZCAD2 control card, EZCAD2.1 4.11 version software.
2.5D laser means 2D laser + motorized Z axis + EZCAD3 software.
Based on the common 2D laser, the latest 2.5D machine is composed by the motorized Z axis and EZCAD3 software, mainly used for STL file metal mold coin relief engraving etc + All features of 2D machines.
3D laser is the most comprehensive machine, which also have the motorized Z axis and EZCAD3 control card, plus a 3D Dynamic focus scanning head , it can be used for curved surface (app 120 degree) marking without rotary, can be used for metal mold and coin relief engraving, what's more, it can be used for big format like 300*300mm metal deep engraving.
3D Fiber Laser Engraver Application
It is compatible with a wide range of materials, including:
Metals: Stainless steel, aluminum, brass, copper, gold, silver, titanium.
Non-metals: Plastics, ceramics, silicon wafers, and coated surfaces.
Automotive and aerospace (engraving on complex parts).
Electronics (marking on PCBs and components).
Jewelry (engraving on curved ornaments).
Mold making (deep engraving for mold designs).
Table type3D Fiber Laser Engraver Advantages
1. High precision and accuracy on complex geometries.
2.3D scanning system and scanning head, infrared focusing system without measuring the focal length, make work more convenient.
3. Non-contact process ensures no damage to the workpiece.
4. The service life is more than 100,000 hours and low maintenance cost.
5. Automatic focus adjustment for varying surface heights.
6. High Photoelectric conversion rate, up to 30%, the whole power less than 600W, saving energy consumption.
3D Fiber Laser Engraver Features
Dynamic 3D Scanning Technology
Equipped with a high-speed 3D galvo scanning head for smooth and precise marking on uneven, inclined, or curved surfaces.
Adjustable Focusing Capability
Automatically adjusts the laser focus based on the surface height and shape, ensuring consistent marking quality across complex geometries.
Wide Compatibility
Supports a variety of materials, including metals (stainless steel, aluminum, brass, etc.), plastics, ceramics, and more.
Quality
Produces crisp, permanent, and high-contrast engravings. Minimal operating costs and a long laser lifespan.
3D Fiber Laser Engraver Parameters
| Model | TC-M |
|---|---|
| Laser Power | 20W, 30W, 50W, 100W (varies by model) |
| Marking Area | 110x110mm, 175x175mm, 300x300mm, etc. |
| Engraving Depth | Up to 1mm (depending on material) |
| Laser Wavelength | 1064nm |
| Positioning Accuracy | ±0.01mm |
| Marking Way | XYZ Triaxial dynamic focusing |
| Cooling Method | Air-cooled |
| Control Software | EZCAD3 (3D version) or equivalent |
| Supported Formats | AI, BMP, PLT, DXF, JPG, PNG, etc. |
| Power Supply | AC 220V/110V, 50/60Hz |
3D Fiber Laser Engraver Main Parts
Fiber Laser source.
Original Raycus/JPT/ IPG/Max optional.
Stable working lifetime up to 100,000+ hours.

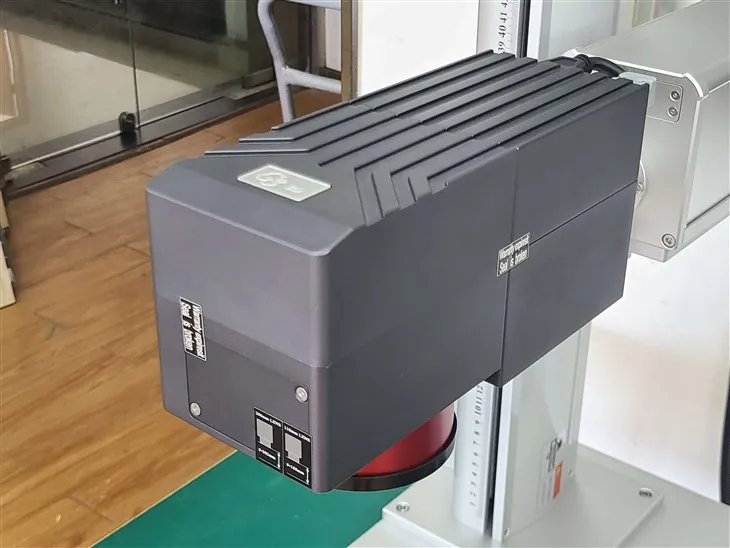

JCZ 3D digital galvanometer
scanning head. Not only can do 2D marking function, but also can do 3D deep engraving and relief.
2D scanning head is also optional.
F-theta lens
Best brand "Wavelength"
Working area 50*50mm-300*300mm optional
Beijing JCZEZCAD2 control card
Genuine EzCAD control system compatible with windows system.
User-friendly interface and high stability.
Easy operation.
Double red pointers.
It can help user to adjust focal
length more convenient and easier.
Meanwell power supply with high precision.
Stand column height is 50cm.
Column height can be customized.
Standard manual, the motorized or autofocus
can be customized.
Aluminum working table.
Flat and smooth compact structure.
Flexible processing
Control buttons
Emergency stop:Press it when meets errors,the machine will stop working immediately.
Key switch:Using key switch to control the power of the machine.
JCZEZCAD3 for 3D laser.
Compatible with multiple formats and vector file formats, simple operation.
Many different languages offered.
3D Fiber Laser Engraver Samples
More Customized Types
FAQ
Any more questions and details , be free to contact us freely ~
