Laser Tree Cutting Machine
Laser tree trimmer is used to remotely remove non-metallic foreign objects such as kites, kite strings, fishing nets, banners, tarpaulins, shade nets, shade cloths, balloons, branches, wasp nests, bird nests, icicles, and agricultural plastic film.
Description

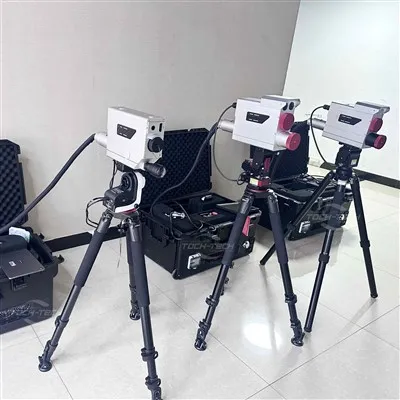

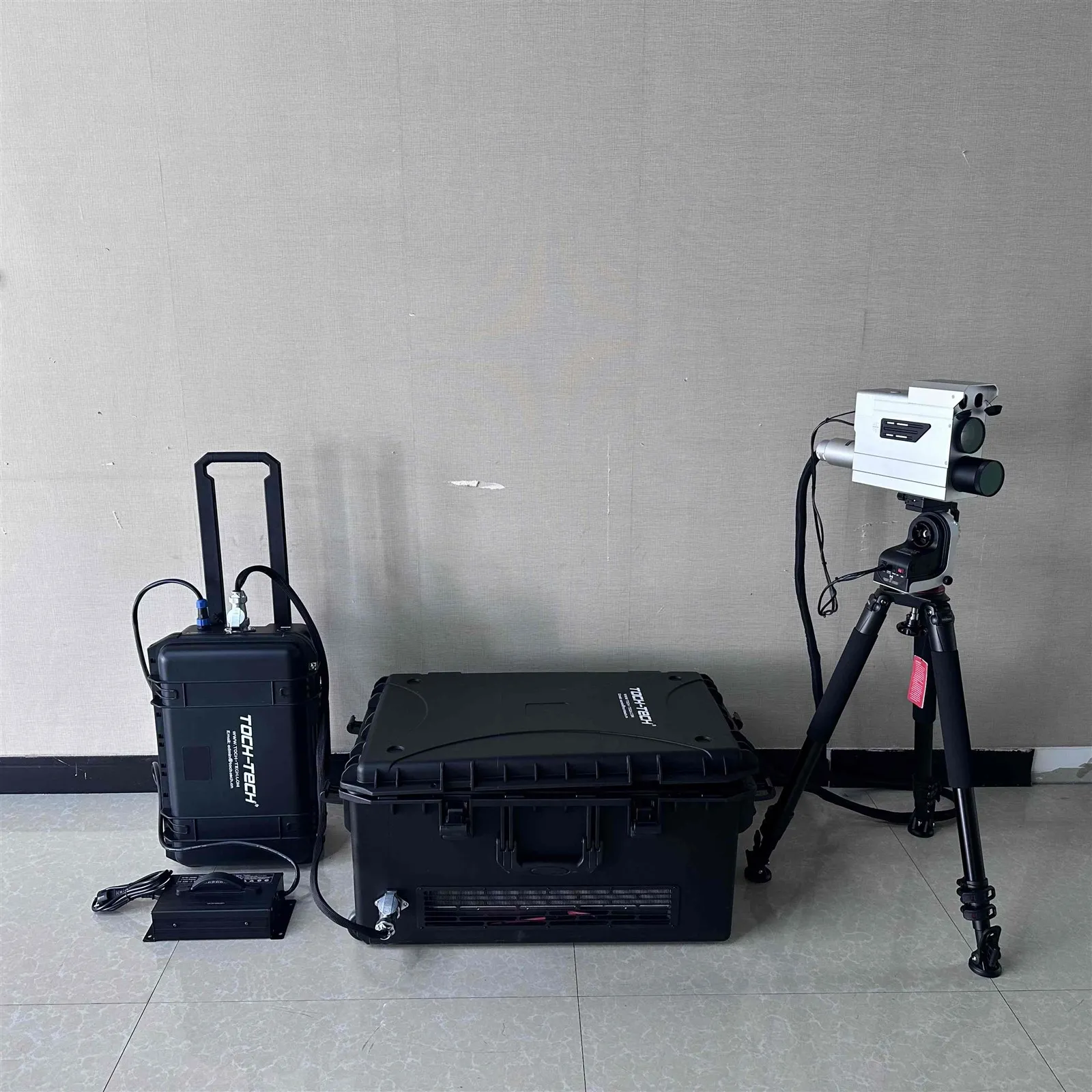

Laser Tree Branch Cutter Introduction

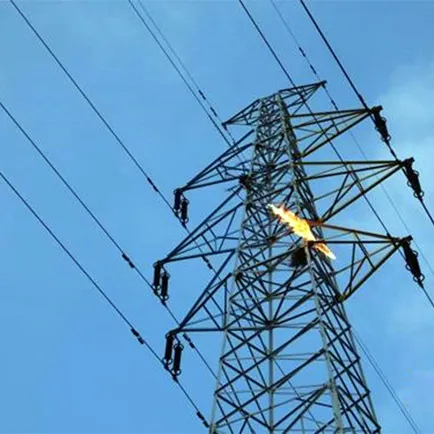

Laser Tree Branch Cutter can remove foreign objects from power transmission lines within 0~300 meters. It can remove common foreign objects such as kites, kite strings, balloons, advertising cloths, tin foil, hemp ropes, trees, bird nests, etc. The equipment can realize live operations, shorten operation time, reduce labor intensity, get rid of geographical restrictions, and can remotely remove foreign objects in a non-contact manner without damaging the wires.
The irradiated part of the foreign object absorbs the laser, causing the local temperature to rise sharply and then melts or vaporizes, and then falls to achieve the purpose of remote removal of the foreign object.
Directed Energy Laser Application background
The traditional method of removing foreign objects has disadvantages:
tree cutting laser Machine Description
tree cutting laser Machine features
1.High-energy laser beam cutting:
Using high-power laser technology, branches can be quickly cut off or vaporized, avoiding efficiency problems caused by complex branch structures when using mechanical tools.
2.Remote operation capability:
Equipped with a laser aiming system and a high-definition camera, operators can accurately locate the target from a safe distance, which is particularly suitable for cleaning branches in dangerous areas such as power lines.
3.Wide range of applications:
In addition to branch clearing, it can also be used for other high-precision cutting needs, such as pruning garden trees or clearing power line obstacles.
An efficient, safe, non-contact removal technology.

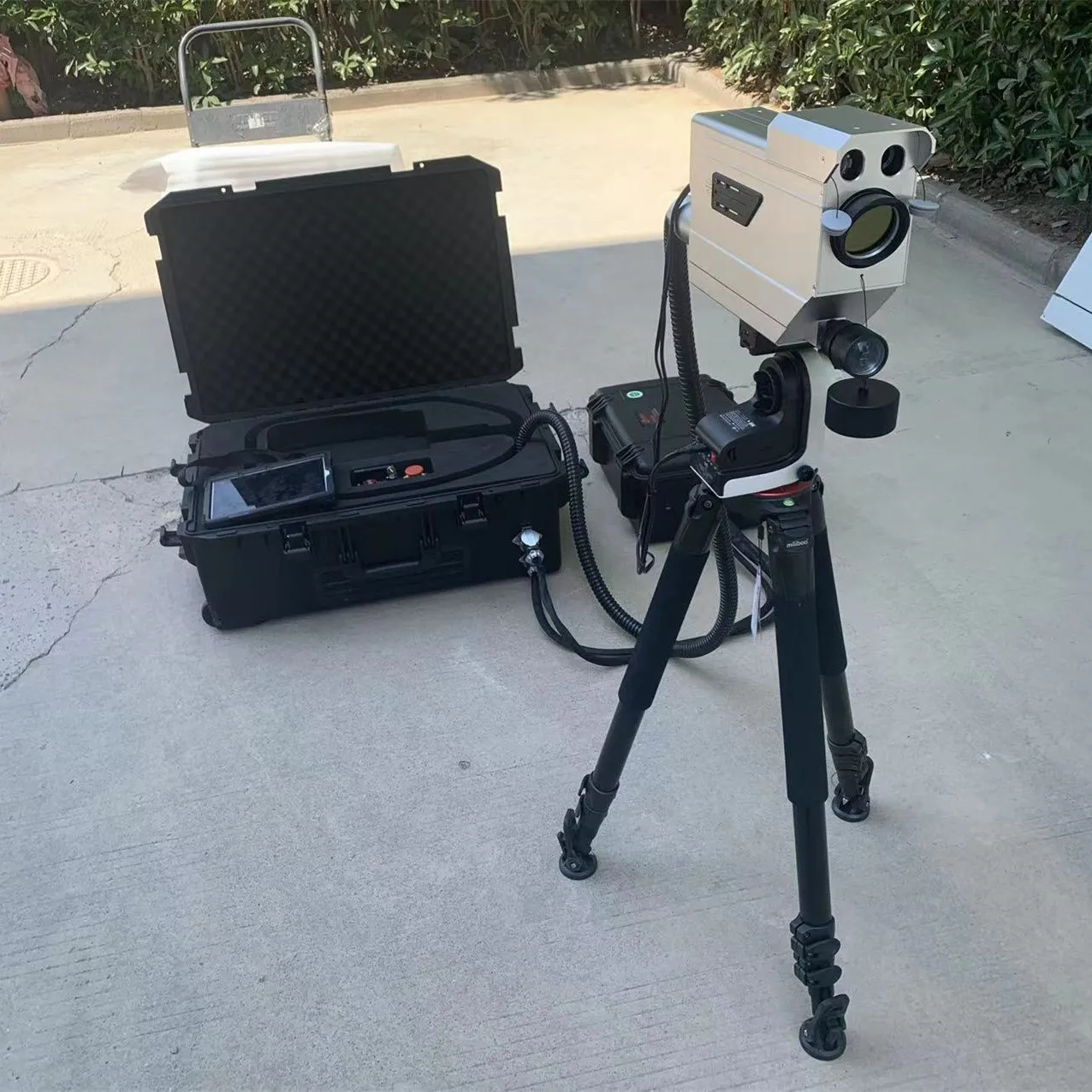

Portable laser cleaner control system
1. The equipment has integrated control capabilities, including capacitive touch screen tablet computers, operating systems, etc.;
2. Equipped with a laser aiming system and a high-definition camera, operators can accurately locate targets from a safe distance, making it particularly suitable for clearing branches in dangerous areas such as power lines.
3. It has the ability to quickly aim at the target. It can realize electronic fence protection of specific objects at any target within the field of view to prevent laser damage to the protected object.
4.Directed Energy Laser acts on the target area without causing pollution to the surrounding environment, which is more environmentally friendly than traditional methods. It can also operate in a variety of harsh environments, such as high humidity, high temperature or cold conditions, meeting the requirements of outdoor all-weather operations.
Practical Application
Laser branch cutter is an efficient tool that uses laser directed energy to cut and remove branches. It is mainly used in garden management, power facility maintenance, forest fire prevention and clearing, and other scenarios that require quick processing of tree branches.
Parameters
paramenters of Tree branch trimming laser
| Specification | 500W | 1000W | 1200W | 2000W |
| Model |
HT-500W-Ultra
|
HT-1000W-Ultra
|
HT-1200W-Ultra
|
HT-2000W-Ultra
|
| Target |
In addition to the removal of floating foreign bodies on overhead lines, it can also be used to clear thick
trees under overhead power lines and railway lines, destroy military shells, etc
|
|||
| Working distance | 0-300m | |||
| Laser | Fiber Laser | |||
| Max laser output power | 10%-100% adjustable | |||
| Laser output wavelength | 1070±10nm | |||
| Focus spot | The laser output focal length is within the range of 0 to 100 meters, and the focused spot size is ≤ 10 mm; | |||
| Typical remote removal time for foreign objects with a width of 10 cm | There are big differences in power and test environment depending on the type, material, color of the foreign body. | |||
| Wire safety requirements | Since the conductor is made of aluminum or copper, the reflectivity is high and the metal conductor will not be damaged if it is directly exposed to the conductor for a short time. | |||
| Laser pointer function | 3With cross cursor indication function, the cross cursor and laser strike position coincide within 300 meters, realizing safety indication and aiming indication | |||

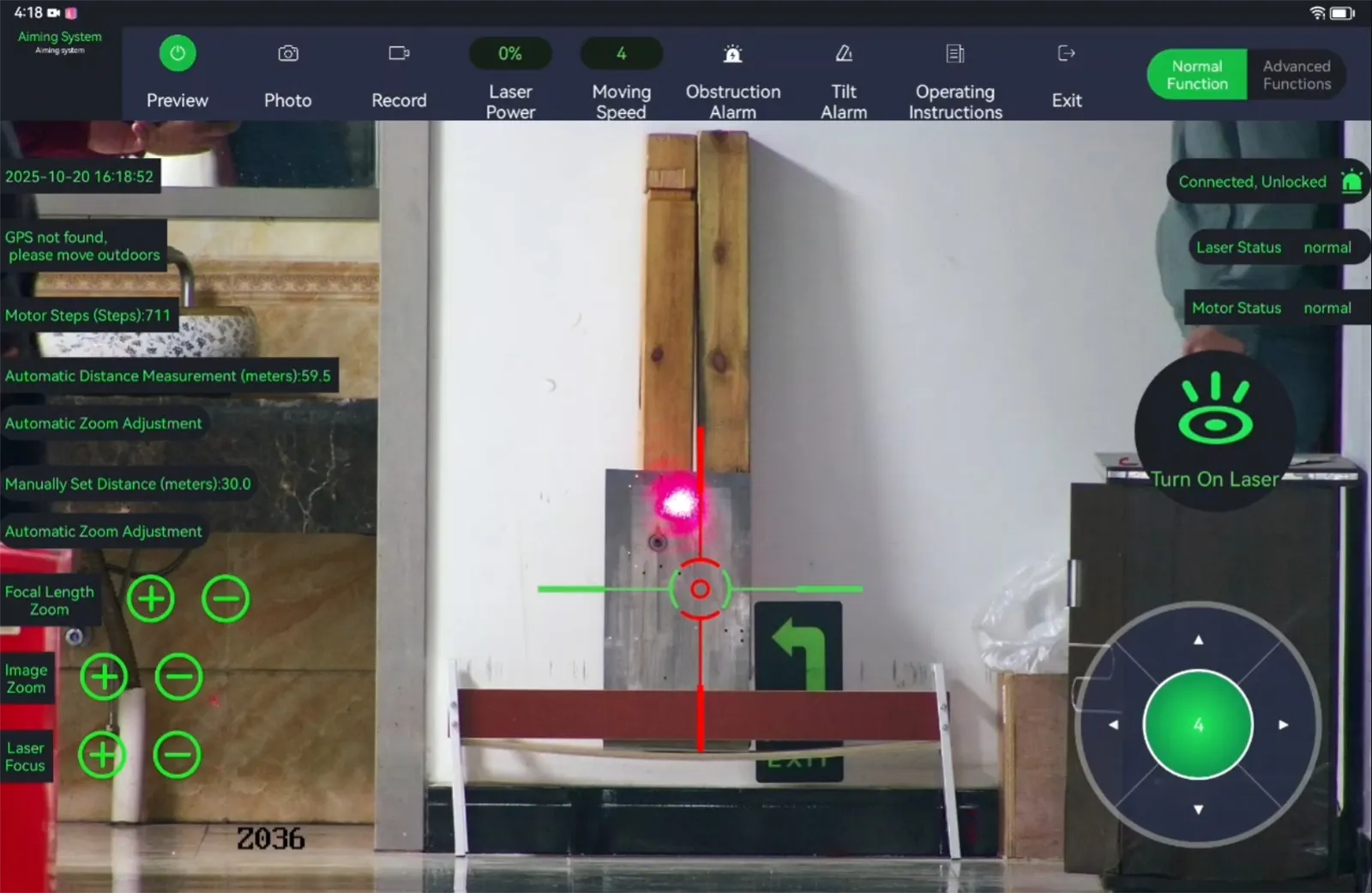

| Electronic telescopic aiming system | The electronic telescopic aiming system uses a tablet computer that integrates pan/tilt control, laser control and display. The automatic focusing camera cooperates with the handheld tablet to display distant targets. No need to observe with the naked eye, 0-200m is clearly visible on the tablet | |||
| Image display delay time | ≤100ms | |||
| Host laser light source cooling method | Forced air cooling | |||
| Fiber optic cable length: | ≥1m (Fiber length can be customized) | |||
| PTZ accuracy requirements | Horizontal rotation angle 0-359°, vertical rotation angle -60-90°, accuracy 0.625 arc seconds. | |||
| System safety protection | It is required to have key switch, host switch and controller switch, emergency stop switch, fingerprint password and other safety protection functions | |||
| Operating temperature | -10℃～40℃ | |||
| Total weight of the main unit | ≤25kg | ≤30kg | ≤50kg | ≤60kg |
| Main chassis outer dimensions | ≤573*427*287mm | ≤815*540*315 | ||
| Equipment safety protection | The equipment has an anti-dumping function: if the equipment suddenly dumps while working, the equipment will automatically cut off the power and stop working. | |||
| The device has an anti-intrusion function. If a foreign object suddenly breaks into the working direction of the device, the device will automatically cut off the light and stop working. | ||||
| Power supply | External dimensions of power supply ≤340*150*210mm, total weight of power supply ≤18kg | External dimensions of power supply ≤476*361*223mm, total weight of power supply ≤24kg | External dimensions of power supply ≤556*358*230mm, total weight of power supply ≤26kg | |
| Power supply continuous working lime |
≥1 hour | |||
| Equipment safety lock | Equipped with a key switch, insert the key to turn on the device | |||
| Emergency stop function | Equipped with an emergency stop switch, take a picture to turn off the device | |||
| Remote authorization function | Need an authorization password to enter the operating system | |||
| Automatic cutting function | Can set the starting point and end point on the operation interface to achieve automatic cutting operations | |||
| Electronic fence function |
The electronic fence can be circled on the operation interface, and the laser will automatically stop
working when it runs into the electronic fence area
|
|||
| Night vision function | The device can be switched to night mode operation | |||
More Models
Max series
HERO series
HEMAX series
If you want to know more about other powers and styles, please feel free to contact us~

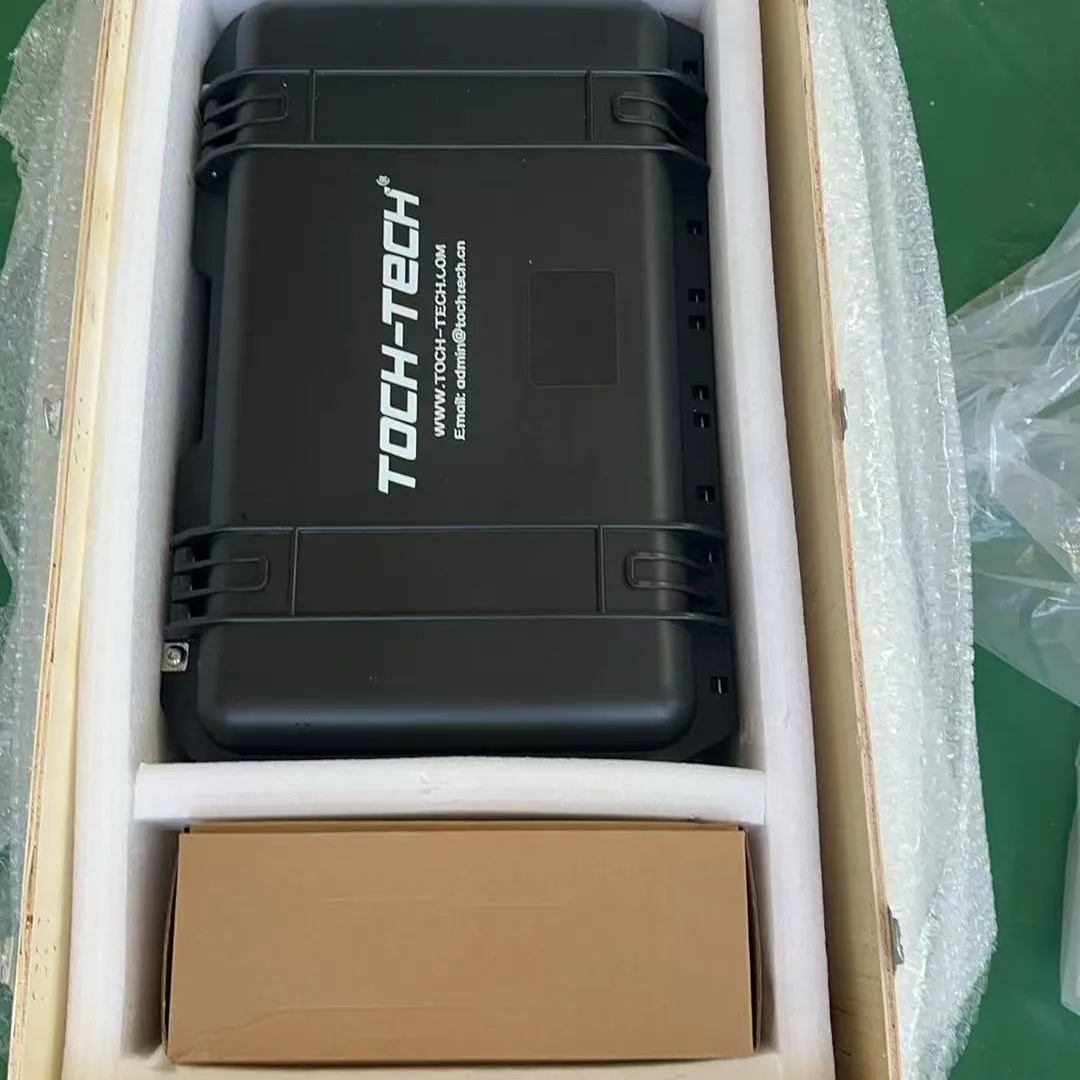

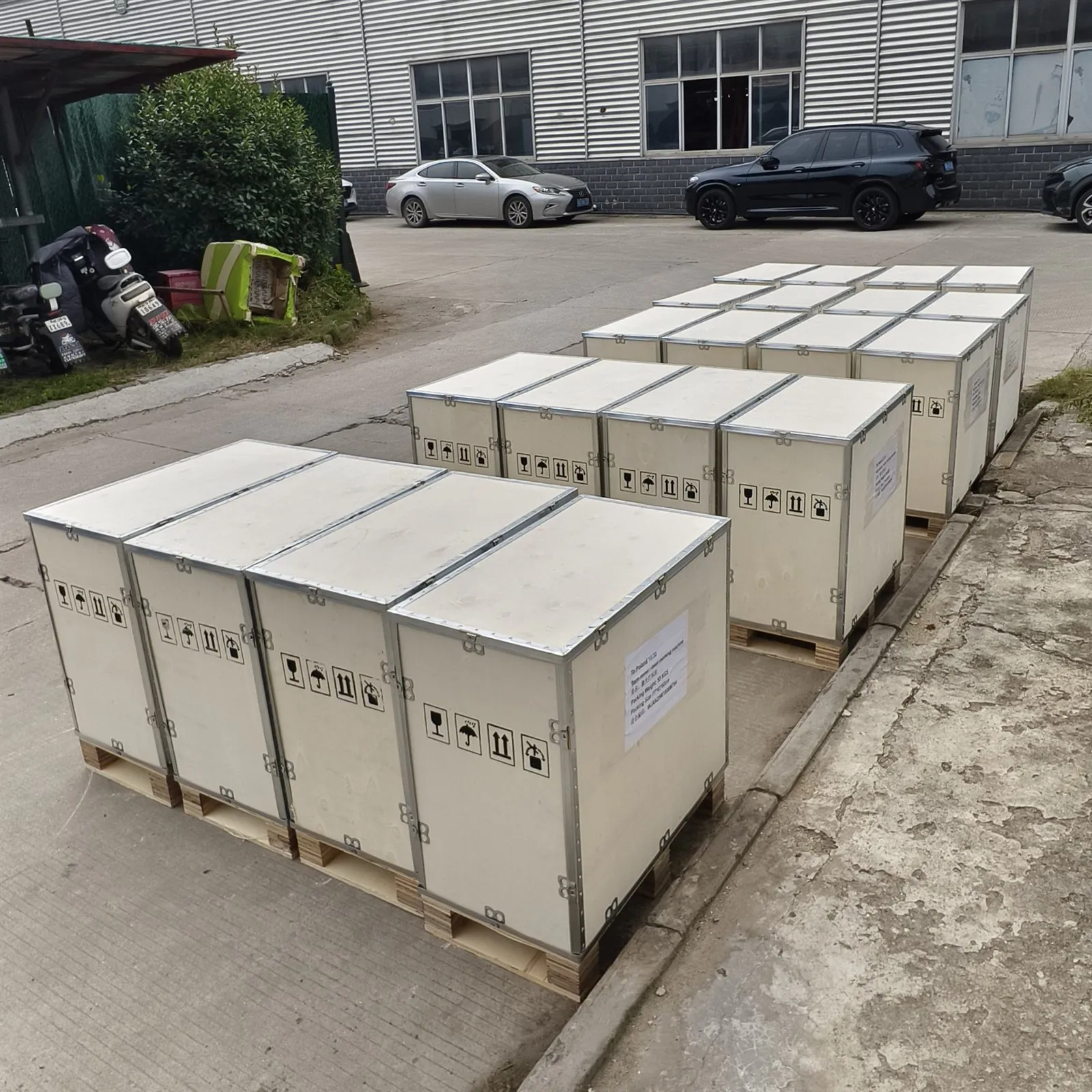

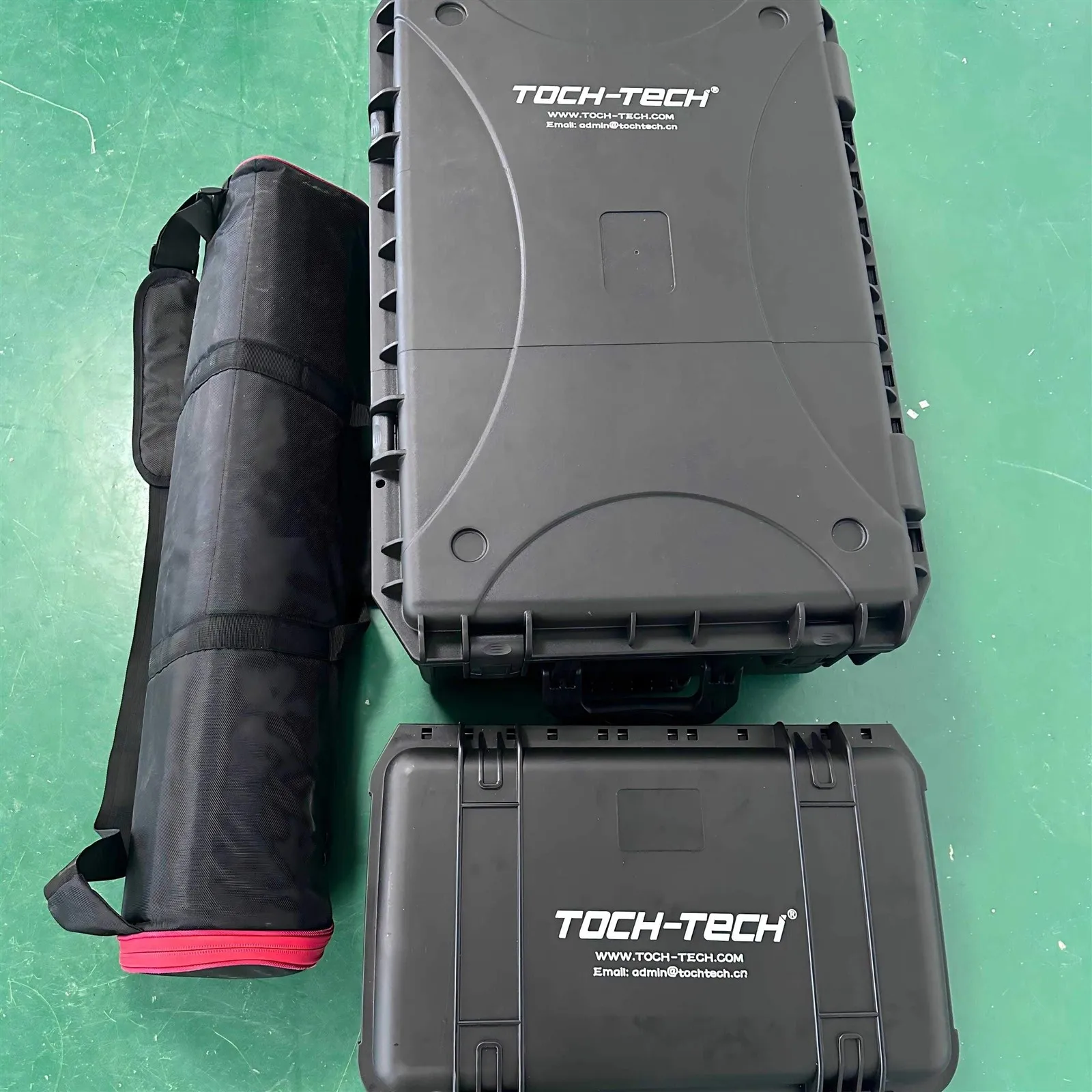

Packing：
FAQ
Q: 1. How thick of wood can a laser cutter cut through?
A: Branches with a diameter of 30mm-110mm can be used, but the thicker the branch, the more power it requires
Q: 2.How does the laser remover work?
A: A laser tree trimmer is a portable, ground-operated device using a focused laser beam tocut and sever tree branches from a distance.
Q: 3.How far can this tree cutter operate?
A: Laser tree branch cutters can reach high or tricky tree branches without requiring anyone to climb them. Their effective range is 0-300 meters; however, power consumption decreases and cutting speed slows down with distance.
Q: 4.Is the laser beam safe for the tree itself, or does it cause unseen damage?
A: The laser cuts by intensely heating and burning wood fibers in a focused spot. The precision can lead to clean cuts, potentially better than some manual methods that might tear bark. However, the intense heat is a key factor – care must be taken to avoid scorching nearby leaves or branches, and there's a fire risk, especially with dry material. When used correctly by trained operators targeting only the specific branch, unintended damage to the rest of the tree should be minimized, but it's a factor requiring careful operation.
