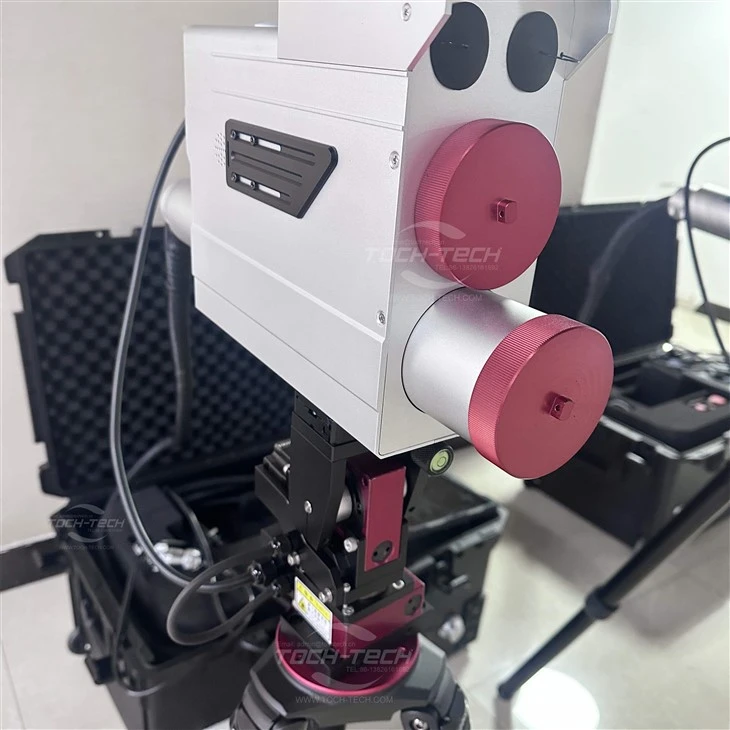

Laser Removal Device
Mobile laser obstacle clearing is used to remotely remove non-metallic foreign objects such as kites, kite lines, fishing nets, banners, tarpaulins, sunshade nets, sunshade cloths, balloons, branches, hornets' nests, bird nests, agricultural plastic films, etc.
Description
Laser Removal Device Introduction
The core principle of the laser cannon is to irradiate the target with a high-intensity laser beam, rapidly heating and destroying the target, and even causing damage to its internal structure. With the advancement of science and technology, especially breakthroughs in laser gain media, laser amplifiers, optical systems and cooling technology, the performance of laser cannons continues to improve.
Laser Removal Device Application
Tochtech laser demolition tool set is mainly used for demolition and obstacle removal rescue tasks within a range of 500 meters for steel plates/aluminum plates/rebars/colored steel tiles/trees/plastics/ice and other media in emergency rescue scenarios. It can automatically focus the high-energy laser beam to the target point for burning, penetration or cutting according to the target distance, and is suitable for urban rescue, vehicle traffic accident rescue, earthquake geological disaster rescue, ice and snow disaster rescue and other rescue operations.
the technical team
Aenean auctor wisi et urna. Aliquam erat volutpat. Duis ac turpis. Integer rutrum ante eu lacus.Vestibulum libero nisl, porta vel, scelerisque eget, malesuada at, neque. Vivamus eget nibh. Nunc pulvinar bibendum venenatis.
the technical team
Aenean auctor wisi et urna. Aliquam erat volutpat. Duis ac turpis. Integer rutrum ante eu lacus.Vestibulum libero nisl, porta vel, scelerisque eget, malesuada at, neque. Vivamus eget nibh. Nunc pulvinar bibendum venenatis.
the technical team
Aenean auctor wisi et urna. Aliquam erat volutpat. Duis ac turpis. Integer rutrum ante eu lacus.Vestibulum libero nisl, porta vel, scelerisque eget, malesuada at, neque. Vivamus eget nibh. Nunc pulvinar bibendum venenatis.
the technical team
Aenean auctor wisi et urna. Aliquam erat volutpat. Duis ac turpis. Integer rutrum ante eu lacus.Vestibulum libero nisl, porta vel, scelerisque eget, malesuada at, neque. Vivamus eget nibh. Nunc pulvinar bibendum venenatis.
team introduction
Lorem ipsum dolor sit amet, consectetur adipiscing slit. Nunc blandit dui eget ipsum pulvinar tempor. In laoreet elit sodales, finibs lorem nec, rutrum ipsum.
the technical team
Aenean auctor wisi et urna. Aliquam erat volutpat. Duis ac turpis. Integer rutrum ante eu lacus.Vestibulum libero nisl, porta vel, scelerisque eget, malesuada at, neque. Vivamus eget nibh. Nunc pulvinar bibendum venenatis.
the technical team
Aenean auctor wisi et urna. Aliquam erat volutpat. Duis ac turpis. Integer rutrum ante eu lacus.Vestibulum libero nisl, porta vel, scelerisque eget, malesuada at, neque. Vivamus eget nibh. Nunc pulvinar bibendum venenatis.
the technical team
Aenean auctor wisi et urna. Aliquam erat volutpat. Duis ac turpis. Integer rutrum ante eu lacus.Vestibulum libero nisl, porta vel, scelerisque eget, malesuada at, neque. Vivamus eget nibh. Nunc pulvinar bibendum venenatis.
the technical team
Aenean auctor wisi et urna. Aliquam erat volutpat. Duis ac turpis. Integer rutrum ante eu lacus.Vestibulum libero nisl, porta vel, scelerisque eget, malesuada at, neque. Vivamus eget nibh. Nunc pulvinar bibendum venen
Laser Removal Device Features
Why choose Directed Energy Laser
Choose the plan that suits you best.
The lens aperture is further improved, and it also has an automatic zoom function, with better dynamic focus spot, and improved efficiency in demolition, obstacle removal and destruction
01
The effective range is longer, and remote operation can be performed at 500m to ensure personnel safety
02
The servo gimbal is used to solve the need for custom trajectories for demolition
03
The AI intelligent image recognition function is realized, which can guide personnel to simplify operations
04
Laser Removal Device Description
Device security features
1.Automatic foreign object intrusion detection system
The equipment has a mobile monitoring function, which can promptly detect the intrusion of foreign objects in front and issue an alarm, automatically cut off the laser, and the laser stops working
2.Equipment tipping detection system
It has an equipment tipping protection function. When the equipment tips over, the power supply should be automatically cut off to prevent accidental injury to nearby people.
Laser Obstacal remover control system
1. The equipment has integrated control capabilities, including capacitive touch screen tablet computers, operating systems, etc.;
2. The equipment is equipped with a high-precision electronically controlled steering system, foreign object image display, laser control and PTZ control integrated into a handheld high-performance tablet computer;
3. Aiming and direction adjustment are extremely accurate and fast, and the high-precision automatic control pan/tilt system has an accuracy of 6.9*10-5 degrees/step (0.12 mm/step angle @100 meters), which can continuously cut foreign objects from a long distance.
4. It has the ability to quickly aim at the target. It can realize electronic fence protection of specific objects at any target within the field of view to prevent laser damage to the protected object.
Parameters
paramenters of laser obstacle remover
| Specification | 1000W | 2000W | 5000W | 8000W | ||
| Model |
HT-1000W-HERO
|
HT-2000W-HERO
|
HT-5000W-HERO | HT-8000W-HERO | ||
| Target | Kites, kite strings, fishing nets, banners, tarpaulins, sunshade nets, sunshade cloths, balloons.branches, hornets' nests, bird nests, agricultural plastic films and other non-metallic foreign objects | |||||
| Working distance | 0-500m | |||||
| Laser | Fiber Laser | |||||
| Max laser output power | 10%-100% adjustable | |||||
| Laser output wavelength | 1070±10nm | |||||
| Focus spot | The laser output focal length is within the range of 0 to 200 meters, and the focused spot size is ≤ 20 mm; | |||||
| Typical remote removal time for foreign objects with a width of 10 cm | There are big differences in power and test environment depending on the type, material, color of the foreign body. | |||||
| Wire safety requirements | Since the conductor is made of aluminum or copper, the reflectivity is high and the metal conductor will not be damaged if it is directly exposed to the conductor for a short time. | |||||
| Laser pointer function | With cross cursor indication function, the cross cursor and laser strike position coincide within 200 meters, realizing safety indication and aiming indication | |||||
| Electronic telescopic aiming system | The electronic telescopic aiming system uses a tablet computer that integrates pan/tilt control, laser control and display. The automatic focusing camera cooperates with the handheld tablet to display distant targets. No need to observe with the naked eye, 0-500m is clearly visible on the tablet | |||||
| Image display delay time | ≤100ms | |||||
| Host laser light source cooling method | Forced air cooling | |||||
| Fiber optic cable length: | ≥1m (Fiber length can be customized) | |||||
| PTZ accuracy requirements | Horizontal rotation angle 0-359°, vertical rotation angle -60-90°, accuracy 0.625 arc seconds. | |||||
| System safety protection | It is required to have key switch, host switch and controller switch, emergency stop switch, fingerprint password and other safety protection functions | |||||
| Operating temperature | -10℃～40℃ | |||||
| Total weight of the main unit | ≤50kg | ≤80kg | Vehicle mounted | |||
| Main chassis outer dimensions |
≤815*540*315mm
|
|
||||
| Equipment safety protection |
The equipment has an anti-tipping function: if
the equipment suddenly falls over while
working, will automatically stop working.
|
NONE | ||||
| The device has an anti-intrusion function. If a foreign object suddenly breaks into the working direction of the device, the device will automatically cut off the light and stop working. | ||||||
| Power supply | External dimensions of power supply
≤556*358*230mm, total weight of power supply ≤26kg
|
External dimensions of power supply
≤556*358*230mm, total weight of power supply ≤33kg
|
Built-in car
|
|||
| Power supply continuous working lime |
≥1 hour | |||||
| Equipment safety lock | Equipped with a key switch, insert the key to turn on the device | |||||
| Emergency stop function | Equipped with an emergency stop switch, take a picture to turn off the device | |||||
| Remote authorization function | Need an authorization password to enter the operating system | |||||
| Automatic cutting function | Can set the starting point and end point on the operation interface to achieve automatic cutting operations | |||||
| Electronic fence function | Can circle the electronic fence on the operation interface, and the laser will automatically stop when it runs into the electronic fence area | |||||
| Intelligent sight adjustment function | Can adjust the crosshair coordinates on the operation interface | |||||
| Night vision function | The device can be switched to night mode operation | |||||
More Models
If you want to know more about other powers and styles, please feel free to contact us~
