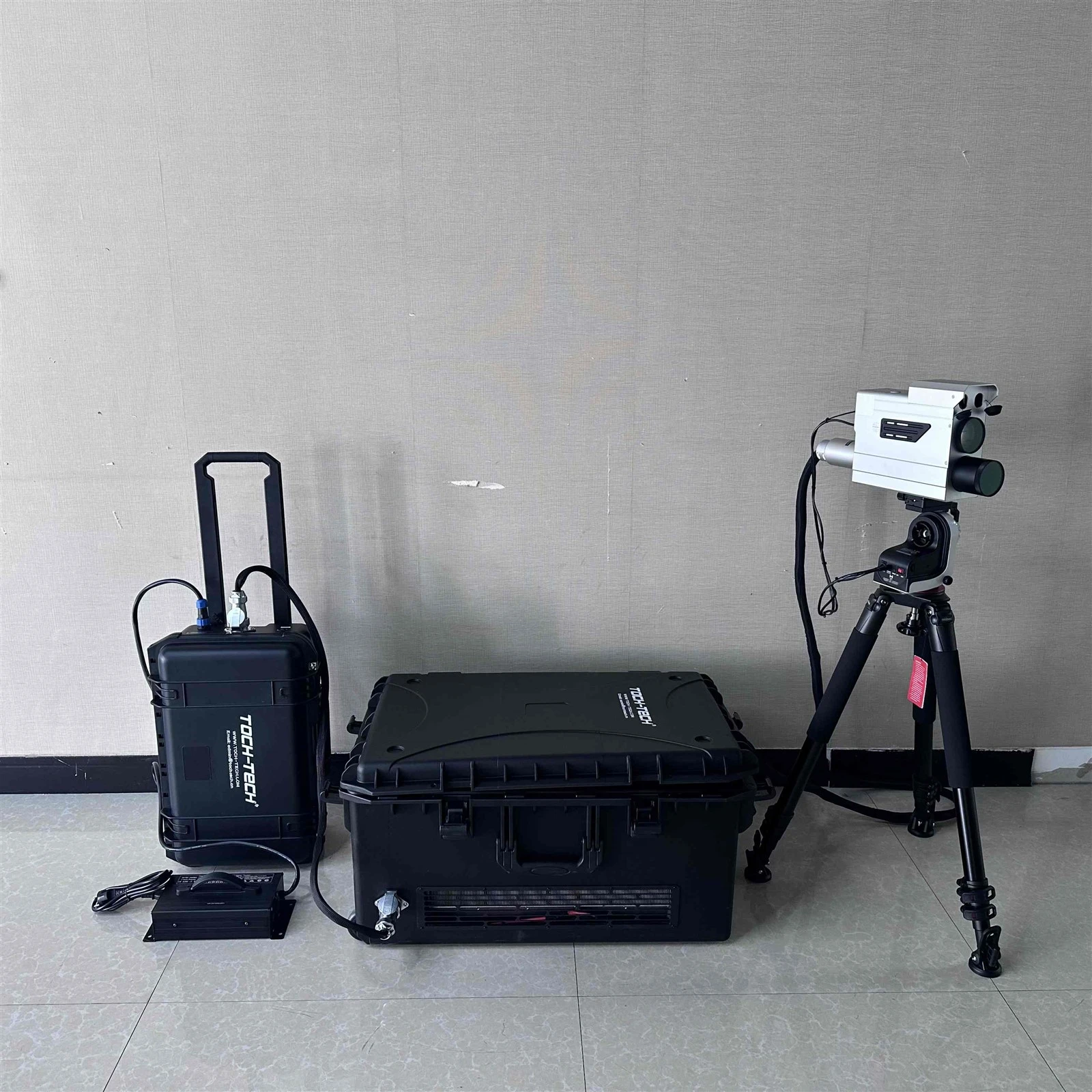

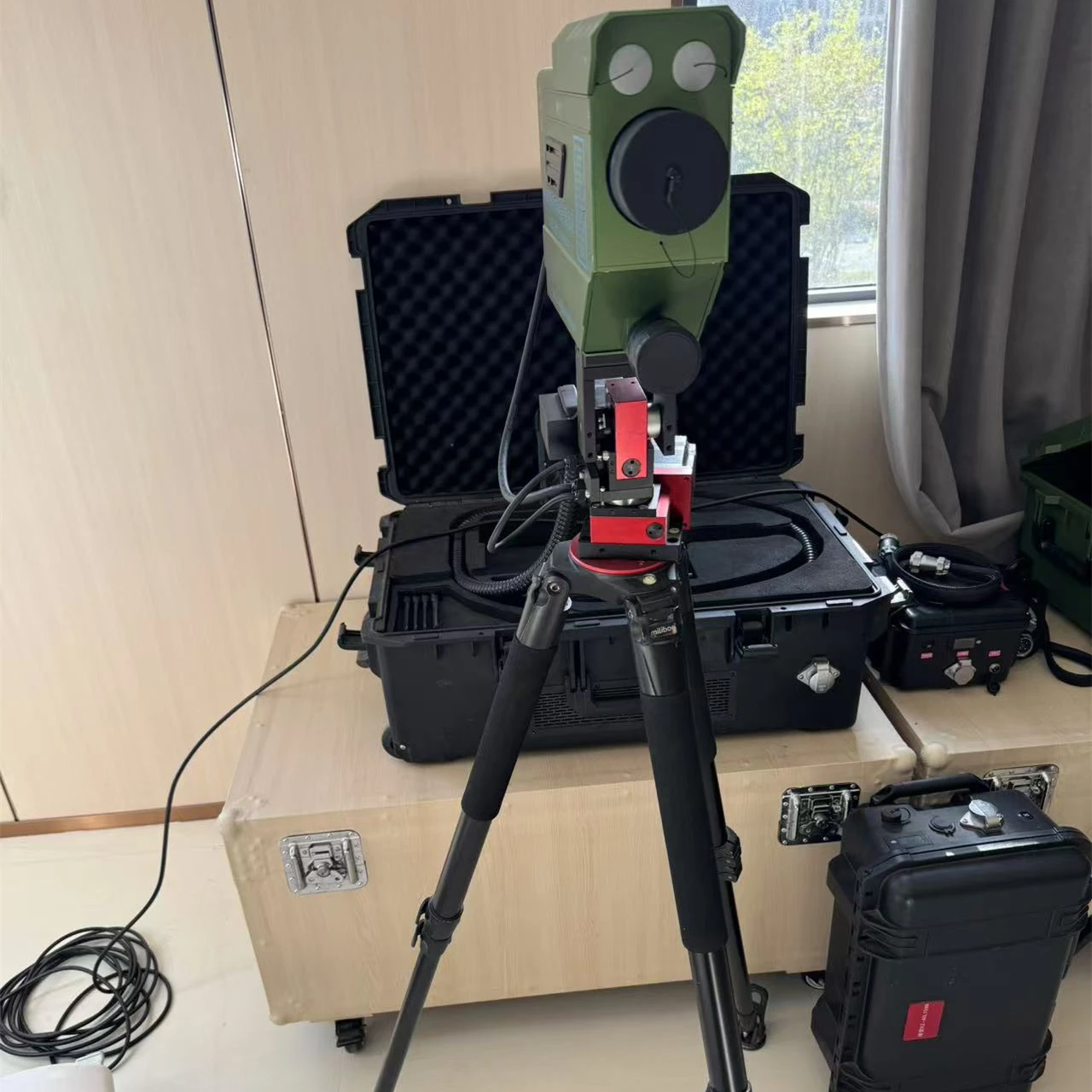

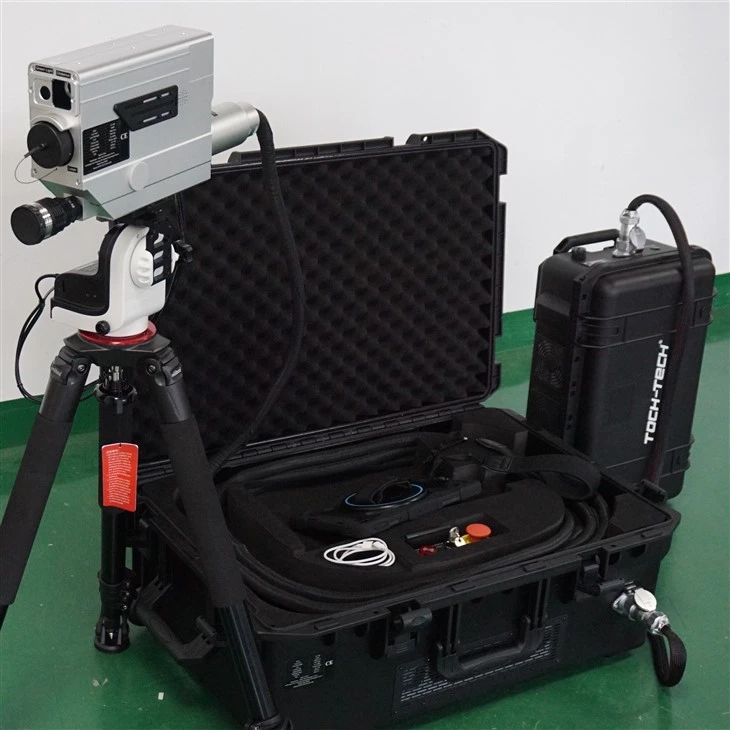

Portable Laser Obstacle Remover
Tochtech Power line laser cleaner is used to remotely remove non-metallic foreign objects such as kites, kite lines, fishing nets, banners, tarpaulins, sunshade nets, sunshade cloths, balloons, branches, hornets' nests, bird nests, agricultural plastic films, etc.
Description
laser obstacle remover Introduction
Our Remote Laser Obstacle Remover uses laser remote focusing technology to precisely control a high-energy laser beam, allowing it to remotely irradiate the gravity-supported part, the wound wire part, or the adhesion area of foreign objects (such as kites, kite strings, agricultural plastic sheets, advertising cloths, sunshade nets, and other floating debris).
The irradiated part of the foreign object absorbs the laser energy, causing the local temperature to rise sharply, leading to melting or vaporization. This process results in the foreign object falling, effectively achieving the purpose of remote removal.
laser obstacle remover Application background
Floating foreign objects such as kites, kite strings, agricultural plastic sheets, advertising cloths, and sunshade nets are often hung on transmission lines, which can easily cause short-circuit accidents, seriously threaten people's lives and property safety, and cause great economic losses to the power system and society.
A powerful tool to ensure the safe and stable operation of the main network
Laser remote foreign matter removal equipment can remove foreign matter from transmission lines within 0 to 300 meters, and can remove common foreign matter such as kites, kite strings, balloons, advertising cloths, tinfoil, hemp rope, trees, bird's nests, etc.
The equipment can realize live operations, shorten operation time, reduce labor intensity, get rid of geographical constraints, and can remove foreign objects remotely and non-contactly without damaging the wires.
Kite string removal
Banner removal
Balloon removal
Shade net removal
Laser Directed Energy Machines Features
Why choose Laser Directed Energy Machines
An efficient, safe, non-contact removal technology.
Remote and non-contact removal of foreign matter
No damage to wires at all, no additional equipment
Achieve removal of foreign matter under live working conditions
Shorten the action time and reduce labor intensity
Flaser obstacle remover Description
laser obstacle remover Device security features
1.Automatic foreign object intrusion detection system
The equipment has a mobile monitoring function, which can promptly detect the intrusion of foreign objects in front and issue an alarm, automatically cut off the laser, and the laser stops working
2.Equipment tipping detection system
It has an equipment tipping protection function. When the equipment tips over, the power supply should be automatically cut off to prevent accidental injury to nearby people.
Parameters
paramenters of laser obstacle remover
| Specification | 350W | 500W | 1000W | 1200W |
| Model | HT-350W-MAX | HT-500W-MAX | HT-1000W-MAX | HT-1200W-MAX |
| Target | Kites, kite strings, fishing nets, banners, tarpaulins, sunshade nets, sunshade cloths, balloons.branches, hornets' nests, bird nests, agricultural plastic films and other non-metallic foreign objects | |||
| Working distance | 0-200m | |||
| Laser | Fiber Laser | |||
| Max laser output power | 10%-100% adjustable | |||
| Laser output wavelength | 1070±10nm | |||
| Focus spot | The laser output focal length is within the range of 0 to 100 meters, and the focused spot size is ≤ 20 mm; | |||
| Typical remote removal time for foreign objects with a width of 10 cm | There are big differences in power and test environment depending on the type, material, color of the foreign body. | |||
| Wire safety requirements | Since the conductor is made of aluminum or copper, the reflectivity is high and the metal conductor will not be damaged if it is directly exposed to the conductor for a short time. | |||
| Laser pointer function | With cross cursor indication function, the cross cursor and laser strike position coincide within 200 meters, realizing safety indication and aiming indication | |||
| Electronic telescopic aiming system | The electronic telescopic aiming system uses a tablet computer that integrates pan/tilt control, laser control and display. The automatic focusing camera cooperates with the handheld tablet to display distant targets. No need to observe with the naked eye, 0-200m is clearly visible on the tablet | |||
| Image display delay time | ≤100ms | |||
| Host laser light source cooling method | Forced air cooling | |||
| Fiber optic cable length: | ≥1m (Fiber length can be customized) | |||
| PTZ accuracy requirements | Horizontal rotation angle 0-359°, vertical rotation angle -60-90°, accuracy 0.625 arc seconds. | |||
| System safety protection | It is required to have key switch, host switch and controller switch, emergency stop switch, fingerprint password and other safety protection functions | |||
| Operating temperature | -10℃～40℃ | |||
| Total weight of the main unit | ≤25kg | ≤30kg | ≤50kg | ≤60kg |
| Main chassis outer dimensions | ≤573*427*287mm | ≤815*540*315 | ||
| Equipment safety protection | The equipment has an anti-dumping function: if the equipment suddenly dumps while working, the equipment will automatically cut off the power and stop working. | |||
| The device has an anti-intrusion function. If a foreign object suddenly breaks into the working direction of the device, the device will automatically cut off the light and stop working. | ||||
| Power supply | External dimensions of power supply ≤340*150*210mm, total weight of power supply ≤18kg | External dimensions of power supply ≤476*361*223mm, total weight of power supply ≤24kg | External dimensions of power supply ≤556*358*230mm, total weight of power supply ≤26kg | |
| Power supply continuous working lime |
≥1 hour | |||
| Equipment safety lock | Equipped with a key switch, insert the key to turn on the device | |||
| Emergency stop function | Equipped with an emergency stop switch, take a picture to turn off the device | |||
| Remote authorization function | Need an authorization password to enter the operating system | |||
| Automatic cutting function | Can set the starting point and end point on the operation interface to achieve automatic cutting operations | |||
| Electronic fence function | Can circle the electronic fence on the operation interface, and the laser will automatically stop when it runs into the electronic fence area | |||
| Intelligent sight adjustment function | Can adjust the crosshair coordinates on the operation interface | |||
| Night vision function | The device can be switched to night mode operation | |||
More Models
Ultra Series
HERO series
HEMAX series
If you want to know more about other powers and styles, please feel free to contact us~
FAQ：
Q: What can TOCHTECH Portable Fiber Laser Obstacle Remover destroy?and its main advantage?
A: Our Fiber Laser Obstacle Remover is a handheld device designed to safely and efficiently remove foreign objects, such as kite lines, plastic bags, balloons, and small branches, from high-voltage power lines. Its primary advantage is that it allows operators to clear these obstacles remotely from the ground without requiring a power outage. This significantly improves maintenance efficiency, reduces downtime, and enhances safety for both personnel and the power grid.
Q: Can you change the language in software for us ?
A: Yes,of course. there is Chinese, English,Japanese, Korean,Russian,Customization is also supported for other languages.
Q: How long can the battery last after it's fully charged?
A: It usually takes more than an hour, but it can also be connected to an outdoor generator.
