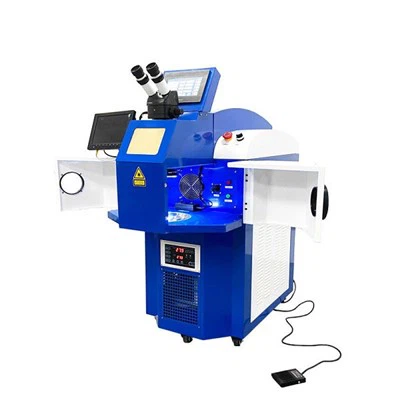

Gold Silver Laser Soldering Machine

Name: Gold Silver Laser Soldering Machine
Brand: Toch
SKU: 257231383

The gold silver laser soldering machine is a specialized tool designed for precision welding in jewelry making.Which is an advanced technology used in the jewelry industry for joining metals with high precision. It utilizes a focused laser beam to melt and fuse metal parts together, making it ideal for delicate pieces and intricate designs.

Send Inquiry

Description

Gold Silver Laser Soldering Machine Introduction

Gold Silver Laser Soldering Machine Introduction is a specialized tool designed for precision welding in jewelry making.Which is an advanced technology used in the jewelry industry for joining metals with high precision. It utilizes a focused laser beam to melt and fuse metal parts together, making it ideal for delicate pieces and intricate designs.

Gold Silver Laser Soldering Machine Features

Precision Welding

Capable of handling fine details and complex shapes without damaging the surrounding material.

Adjustable Parameters

Operators can control factors like power, pulse duration, and frequency for optimal results on various metals.

Minimal Heat Impact

Reduces the risk of warping or discoloration, preserving the integrity of the jewelry.

Speed and Efficiency

Allows for quick repairs and production, enhancing workflow in jewelry manufacturing.

Gold Silver Laser Soldering Machine Applications

1.Repair Work: Ideal for fixing broken pieces, reattaching clasps, or re-sizing rings with minimal visual impact.

2.Creating Complex Designs: Enables the welding of intricate designs and settings, such as those found in gemstone settings.

3.Assembly of Components: Useful for joining multiple metal components seamlessly, which is crucial for custom jewelry pieces.

4.Combining Different Metals: Can effectively weld dissimilar metals, such as gold and silver, without compromising quality.

5.Prototyping: Allows designers to quickly create prototypes of their designs for evaluation.

Gold Silver Laser Soldering Machine Description

Main Parts

Heat dissipation fans

Strongly reduce the machine overheating caused by using the machine too long, so that machine continuous operation.

CCD & microscope

Dual display. High Precision Microscope, real-time observation of the welding process, long working hours without eye fatigue, so you can use comfort.

Touch screen & CCD display

High-definition CCD display visual inspection system, welding points are clearly visible.Adjust current, pulse width, light spot, etc.

Internal Water tank

Please use pure water or distilled water. Better to protect the machine working.Which needs to be replaced per one month.

Machine interface

Power port / Gas port /Foot switch,Which is easy to operate, Even if new users.

Working table

It equips with big inner working space ,which enable operator' hands in flexible angles.The sponge holds the hands up so that the work is not fatiguing

Gas Pipe

The gas is dry argon or nitrogen. To ensure clean welding ,it needs blow Aron gas to protect the welding surface

Internal organization

Reasonable design and neat wiring, water tank isolated from power supply. Ceramic spotting cavity, corrosion resistant, high temperature resistant, high photoelectric conversion efficiency.

Water temperature monitoring

Real-time monitoring of water temperature.

Focal Length

Focal Length F110

Which is the most powerful point for welding jobs.

Brightness switch & Joy stick

Adjust the brightness of the machine and screen.

Joy stick to adjust the parameters. Easy to operate during welding.

Consumable

Laser pulsed xenon lamp with strong loading capacity, high pumping efficiency, good laser beam quality and long life.

gold Silver Laser Soldering Machine Parameters

Laser type	YAG Laser/1064nm
Laser Wavelength	1064nm
Related power	150W(60W 100W 200W optional)
Single pulse energy	0-80J
pulse width	0.1-15ms
Frequency	1-20Hz
Welding depth	0.1-3mm
Electricity	220V±5% ,50HZ
Cooling way	Built-in water cooling
Visual system:	Microscope+CCD
Voice	Voice alarm
Control system	LCD touch control panel
Welding	Foot switch click
Welding materials	Silver, Gold, Stainless Steel, Brass, Cooper,Titanium, Metal alloy
Welding industry	Widely applicable to all kinds of micro parts of precision welding, such as Jewelry, electronics, Dental, watches, glasses,etc.
Machine dimension	560x290x290 mm
Machine weight	34kgs

More Models

photobank

FAQ

Q: Q: What is gold silver laser soldering machine?

A: A: YAG laser welding machine uses high-intensity laser beams to fuse metal parts together, commonly used in jewelry making.

Q: Q: What materials can be welded with a YAG machine?

A: A: It can weld various metals, including gold, silver, platinum, and some alloys.

Q: Q: What are the benefits of using a YAG laser welding machine?

A: A: Precise control over the weld, minimal heat affected zone, reduced distortion, and ability to weld delicate components.

Q: Q: What safety precautions should be taken?

A: A: Use appropriate protective eyewear, maintain a clean workspace, and ensure proper ventilation.

Q: Q: Can it be used for repair work?

A: A: Yes, it's excellent for repairing broken jewelry pieces or joining new components.

Q: Q: How does the machine handle different thicknesses of metal?

A: A: The machine can be adjusted for power and speed to accommodate various thicknesses.

Q: Q: Where can I get training on how to use the machine?

A: A: Many suppliers offer training programs, and there are online courses available as well.
