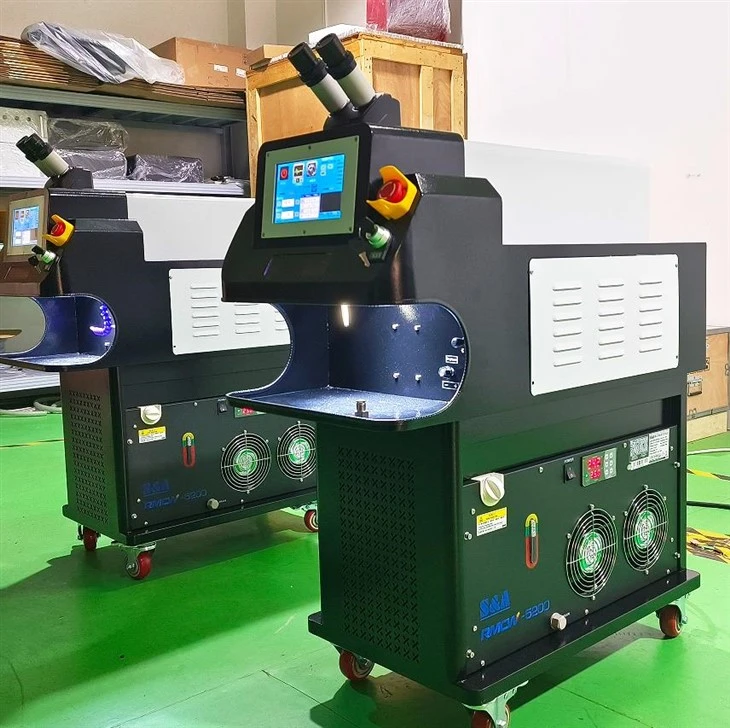

200W Jewelry Laser Solder Machine
200W jewelry laser solder machine widely used for jewelry, golf head, medical instrument, instrument, electronics, machinery, automobile, etc,especially for the perforating of gold and silver jewelry, wedding ring , necklace etc repair and weld.
Description
200W Jewelry Laser Solder Machine Introduction
200W Jewelry Laser Solder Machine Features:
1. Water cooling system: Internal integration water cooling system , make the machine size much smaller, keep the machine working in suitable temperature.
2.Microscope: with microscope , improve the machine precision welding ability , specially for extremely fine and small parts ,like prongs, settings, and delicate chains, without damaging nearby areas.
3.Display:display the welding effect at all times, with colorful , make sure the welding much easier.
4.Easy to operate: Without special request for the operator, very easy to learn, save time , improve welding speed.
200W Jewelry Laser Solder Machine Technical Data
|
Laser type |
YAG Laser |
|
Laser Wavelength |
1064nm |
|
Related power |
200W |
|
Single pulse energy |
0-100J |
|
Peak power |
9KW |
|
Pulse width |
1.5-20ms |
|
Pulse frequency |
1-50KHZ |
|
Diameter of melting pool |
0.2-3mm |
|
Load |
50kg |
|
Rated power consumption |
6KW |
|
Electricity |
220V±5% ,50HZ |
|
Cooling way |
Built-in water cooling |
|
Visual system: |
Microscope+CCD |
|
Control system |
LCD touch control panel |
|
Welding |
Foot switch click |
|
Welding materials |
Silver, Gold, Stainless Steel, Brass, Cooper,Titanium, Metal alloy |
|
Welding industry |
Widely applicable to all kinds of micro parts of precision welding, such as Jewelry, electronics, Dental, watches, glasses.etc. |
200W Jewelry Laser Solder Machine Applications
200W Jewelry Laser Solder Machine Components
MICROSCOPE
Easy for viewing the welding position and adjusting parameters accordingly.
PARAMETER PANEL
Touch screen interface,easy operation,User can adjust the current,pulse width,frequency and facula more expediently.
CCD MOBITOR
CCD monitor Optional accessories-CCD display to make observation more convenient during welding
POWER CONTROLLER
Two buttons.Energency stops and turn on the touch screen.
FOOT PEDAL
The external foot pedal controls the laser work, easy to operate.
BUTTONS & JOYSTICKS
Adjust the parameters of the touch screen by up and down,left and right.
200W Jewelry Laser Solder Machine Samples
FAQ
Q:1.What materials can I weld with this machine?
A:You can weld various metals, including gold, silver, platinum, titanium, and their alloys.
Q:2.Is the machine suitable for beginners?
A:Yes! The user-friendly interface and adjustable settings make it easy for beginners to operate while still being effective for experienced users.
Q:3.What is the maximum thickness of metal I can weld?
A:The maximum thickness varies by material, but generally, it can handle thin to medium gauge metals effectively.
Q:4.Can I use this machine for repairs?
A:Absolutely! It's perfect for repairing broken pieces, reattaching clasps, and fixing intricate designs.
Q:5.How long does it take to complete a weld?
A:Welding times vary depending on the thickness and type of material, but most welds can be completed in seconds.
Q:6.Is there a warranty?
A:Yes, the machine typically comes with a warranty covering manufacturing defects. Please check the specific terms for details.
