Control System FSCUT6000 for Laser Cutting
CypCut laser cutting control system (CypCut for short) is a set of system software designed for plane laser cutting, including laser cutting process, common layout function and laser processing control, most of its functions are applied in graphics processing, parameter settings, custom cutting process editing, layout, path layer planning, simulation and cutting process control.
Description
Introduction
FSCUT6000 is an intelligent numerical control system developed by CYPCUT for medium to high power laser cutting machines. It integrates high-speed motion control, precision machining algorithms, and automation functions, and is suitable for precision cutting of metal sheets (carbon steel, stainless steel, aluminum alloy, etc.). It is widely used in the field of industrial manufacturing.
Advantages
FSCUT6000 Control System
High precision cutting
1.Adopting nanoscale interpolation algorithm, the repeated positioning accuracy reaches ± 0.02mm, supporting contour smoothness under high-speed cutting.
2.Dynamic compensation technology can eliminate mechanical errors and adapt to different materials and thicknesses
01
Intelligent optimization function
1.Automatic typesetting: Nested software supports multi part edge cutting, increasing material utilization by more than 15%
2.Process database: Pre stored thousands of material parameters, one click matching of power, speed, and gas type.
02
Efficient and stable
1.Equipped with multi-core processors, the processing speed is 30% faster than traditional systems, and supports 2000Hz high-frequency real-time control
2.Anti interference design: Industrial grade hardware protection, suitable for harsh environments such as high temperature and dust.
03
Human computer interaction friendly
15 inch high-definition touch screen, graphical operation interface, supports offline programming and remote monitoring (optional 4G module)
04
Product Parameters
Product Description
Metal processing industry: sheet metal parts, chassis cabinets, elevator panels, automotive parts, etc.
Precision manufacturing: cutting of aerospace parts and electronic devices.
Customized production: Cutting of irregular patterns such as advertising characters and artworks.

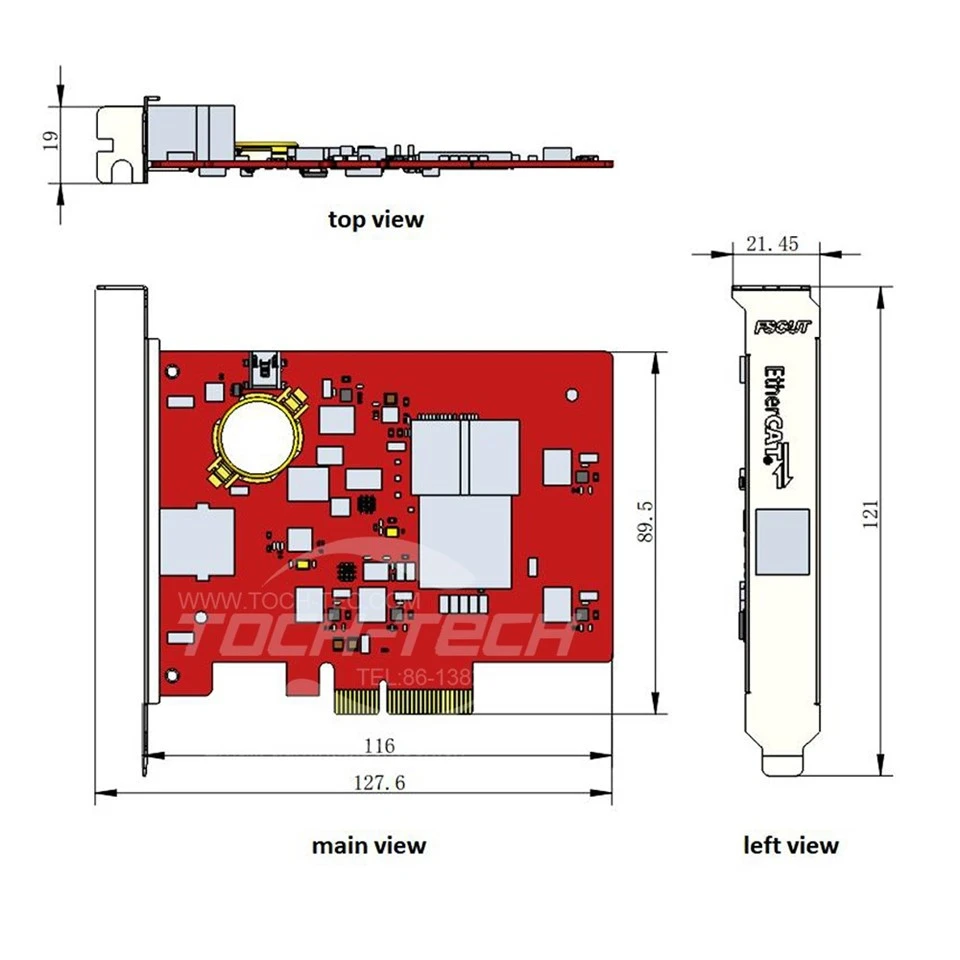

Product Details
Packing List
