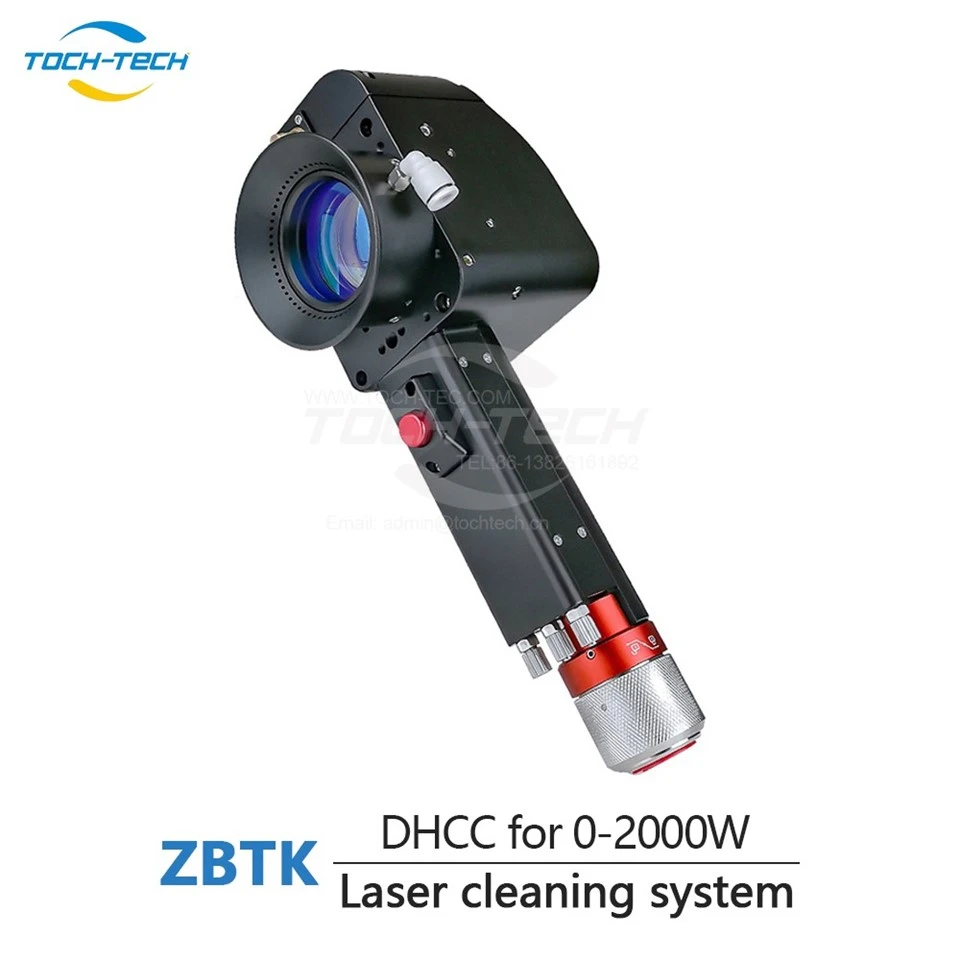

DHCC2000 0-2000W Laser Cleaning Head
DHCC2000 0-2000W Laser Cleaning Head is highly integrated two-dimensional scanning galvanometer,optical lens components,cleaning control card,software and human-machine interface,etc.,the system is stable and reliable,compact structure,accurate optical path,good sealing,delicate appearance,light weight,convenient installation.All you need is a laser and a power source inside the gun.
Description
Products features
The ZBTK DHCC2000 laser cleaning head is a high-performance, modular design laser cleaning equipment suitable for industrial cleaning needs such as rust removal, paint stripping, and oxide layer removal on metal surfaces. Adopting advanced fiber laser technology, it has the advantages of high cleaning efficiency, no substrate damage, environmental protection and pollution-free, and can be widely used in fields such as automobile manufacturing, rail transportation, aerospace, mold repair, etc.
Why Choose DHCC2000
DHCC2000 Laser Cleaning Head
Non contact cleaning
-to avoid substrate damage caused by traditional polishing and sandblasting.
Intelligent control
supports automation integration to improve batch operation efficiency.
No consumables, low operating costs
no need for chemical solvents, reducing waste disposal costs.
Stable and reliable
industrial grade protective design, suitable for harsh working environments.
Products specifications
| Argument | Range |
| Interface type | QCS(17/20/24) |
| Laser power | <2000W/CW |
| Cleaning width | <500mm |
| Cleaning accuracy | <1um |
| Cleaning speed | <20000mm/s |
| Cleaning mode | Line/rectangle/circle/ellipse/sine |
| Lens reflection wavelength | 1050~1090nm |
| Power supply | ±15V/5A |
| Operating temperature | -15to65°C |
| Storage temperature | -10to60°C |
| Gun weight | <850g |
| Gun body Dimensions LWH(mm) | 220×56×100 |
Products Description
🔹 Automotive manufacturing - pre welding treatment, body paint stripping, rust removal of components
🔹 Rail Transit - Wheel Cleaning, Body Coating Stripping
🔹 Aerospace - Engine component oxide layer cleaning, skin coating removal
🔹 Mold repair - precision mold cleaning, non-destructive restoration of surface smoothness
🔹 Cultural relic restoration - non-contact removal of surface pollutants from metal and stone cultural relics
