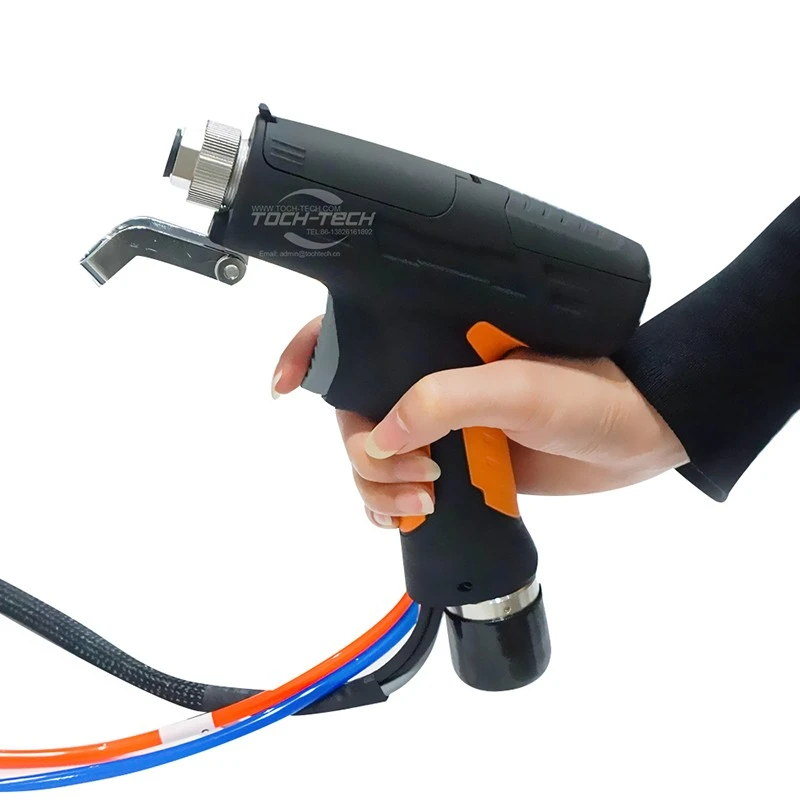

SUP21T Handheld Laser Welding Head

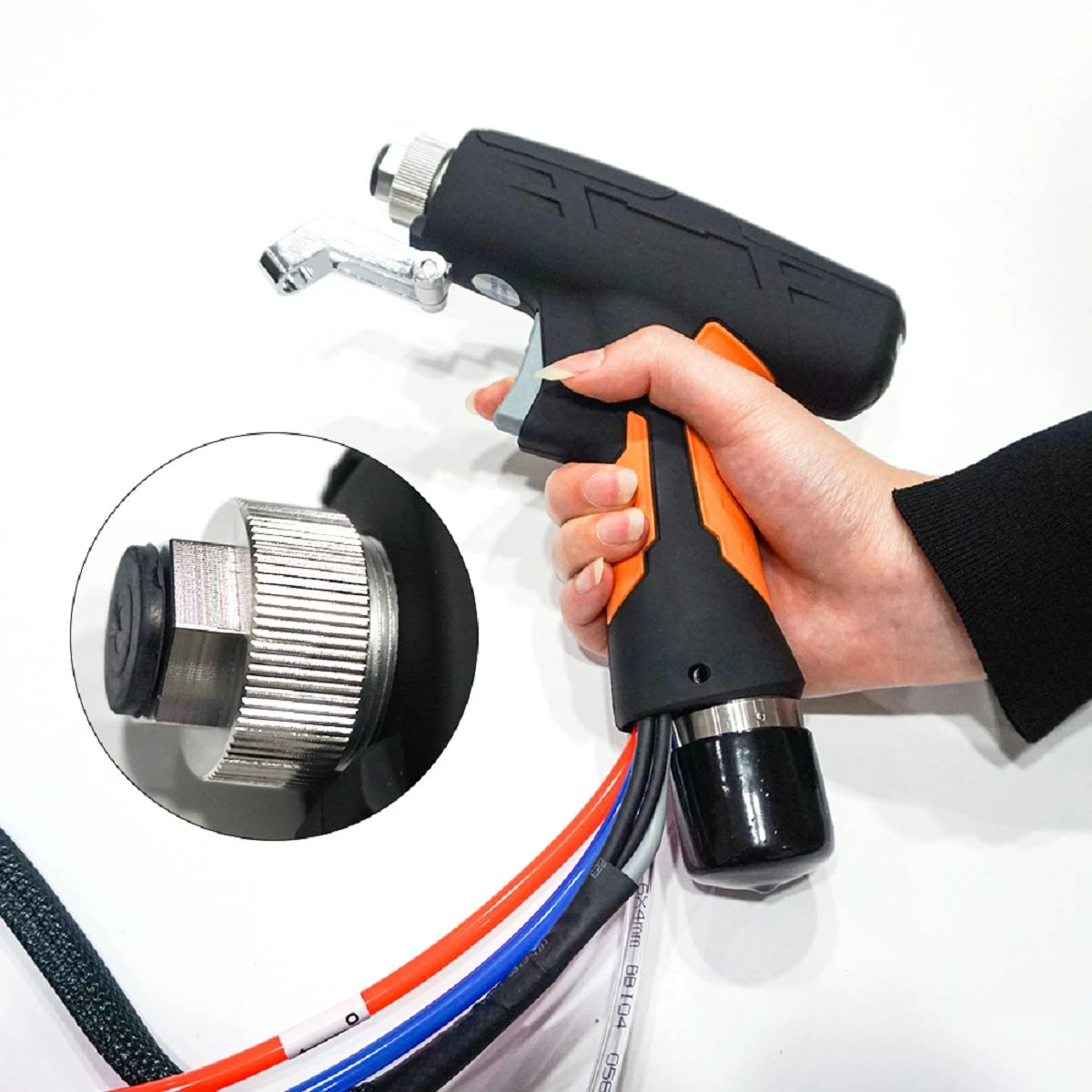

SUP21T 4-in-1 Laser Welding Head is a single-motor scanningoscillating welding head that is used in hand-held welding, cleaning, andcutting fields.lt is developed based on the SUP21S handheld laser head.Compared with SUP21S, SUP21T adds a [Motor Cover],optimizes the[Protective Lens Cover] to make on-site maintenance easier, improvesthe overall space structure, and further enhances the overall stability ofthe device.





Specifications

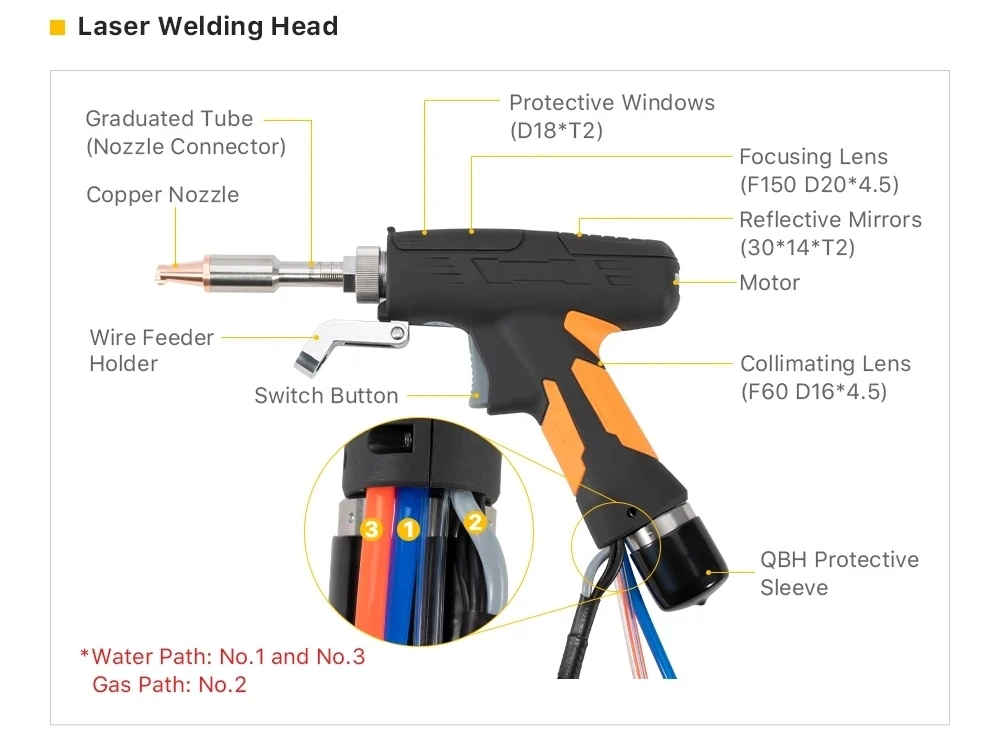

Collimating Lens	D16*4.5/F60
Applicable Power	≤3000W
Applicable Wavelength	1064nm/10.6um
Supply Voltage	220V±10%VAC 50/60Hz





1.The product has a self-developed control system and structural design.making it suitable for various welding applications within 3000W. lt alsofeatures multiple security alarms and simple, flexible operation.

2.The entire machine is more stable, with all parameters visible and thestatus of the machine monitored in real-time to prevent problems andfacilitate troubleshooting. Faults are investigated and solved to ensurethe hand-held welding head works stably.

3.The subversive structural design features a modular design of eachfunctional structure, greatly reducing the failure rate and facilitatingfuture maintenance.

4.The parameters are controllable, and the repeatability is high. Withstable nozzle air pressure and lens state, only stable laser power isneeded.Process parameters must be repeatable, greatly improvingefficiency.





QUICK AND SMOOTH WELDING

Fast welding speed, smooth wire connection, no need for secondarypolishing saving manpower
