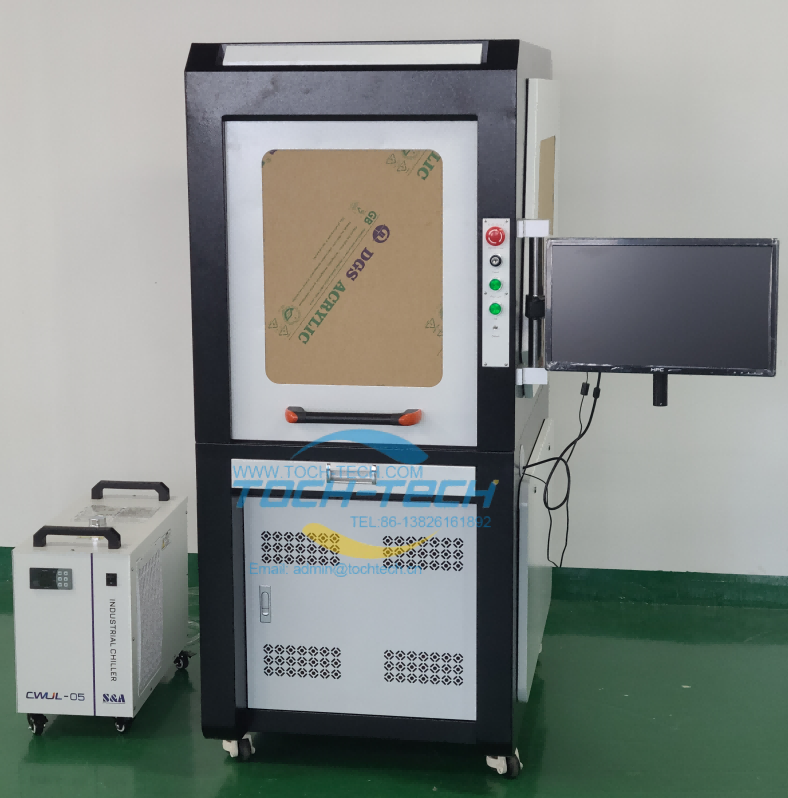

Glass Cutting Drilling Laser Engraving Machine
The JPT MOPA M8 Fiber Laser 100W is a cutting-edge laser system designed for versatility and precision. This advanced laser machine is capable of cutting, drilling, and engraving materials such as glass and metal, making it an excellent solution for industries requiring high-quality and reliable laser processing.
Description
Glass cutting drilling laser engraving Machine Introduction
The JPT MOPA M8 Fiber Laser is a cutting-edge laser system designed for versatility and precision.
This advanced laser machine is capable of cutting, drilling, and engraving materials such as glass and metal, making it an excellent solution for industries requiring high-quality and reliable laser processing.
JPT M8 series laser adopts MOPA (Main Oscillation Power Amplification) structure, which can support independent adjustment of pulse width and pulse repetition rate. The M8 series optimizes the pulse peak power and beam quality on the basis of maintaining the performance of the original series. It can maintain excellent beam quality under high-power working conditions, and the maximum peak power is greater than 50 kW. It is especially suitable for glass drilling and other applications that have high requirements on peak power and brightness.
The Fiber Laser Glass Cutting, Drilling Metal Engraver is an all-in-one solution for industries that demand precision, efficiency, and versatility. Its advanced capabilities make it ideal for high-quality processing in manufacturing, custom design, and artistic projects. Whether you need precise glass drilling, intricate metal engraving, or clean cutting, this machine delivers outstanding results every time.
Glass cutting drilling laser engraving machine Application
1. Glass Processing
Cutting: Precision shaping of glass for screens, decorative panels, and industrial components.
Drilling: Creation of small, clean holes for electronics or laboratory glassware.
Marking: Decorative designs, logos, or patterns on glassware or panels.
2. Metal Engraving
Permanent marking of serial numbers, barcodes, logos, or decorative patterns.
Deep engraving for industrial applications like tools and machinery parts.
High-resolution artistic engravings for jewelry or personalized items.
3. Industrial Uses
Electronics: Cutting glass for screens and drilling precise holes for connectors.
Automotive: Marking metal components with part numbers or QR codes.
Aerospace: High-precision drilling and marking for sensitive applications.
4. Artistic and Commercial Applications
Custom engraving on glass and metal gifts, trophies, and jewelry.
Glass cutting for architectural décor or personalized glass products.
Glass cutting drilling laser engraving machine Features
Powerful JPT MOPA Fiber Laser Source
Offering high power and flexibility for various applications. Suitable for cutting, drilling, and engraving on both glass and metal.
Wide Material Compatibility
Glass: Tempered glass, borosilicate glass, quartz glass, and more.
Metals: Stainless steel, aluminum, brass, copper, gold, silver, and other alloys.
Glass Cutting & Drilling
Clean, precise cuts on various glass types without cracks or chipping.
Small-diameter drilling for high-precision applications such as electronics or scientific instruments.
Advanced Control Software
EZCAD for precise control of marking, cutting, and drilling operations.
Allows importing of custom designs from CorelDRAW, AutoCAD, and other design tools.
Other models for optional
Glass cutting drilling laser engraving machine Main Parts
The JPT MOPA M8 laser source optimizes the pulse peak power and beam quality on the basis of maintaining the performance of the original series.
High Speed galvo scanner laser head.
Original Scanlab/sino-galvo/JCZ/ZBTK optional.
Fast speed and high accuracy.
F-theta lens
Best brand "Wavelength"
Working area 50*50mm-300*300mm optional
Beijing JCZEZCAD2 control card
Genuine EzCAD control system compatible with windows system.
User-friendly interface and high stability.
Easy operation.
Water chiller for M8 100W water cooling.
Meanwell power supply with high precision.
Stand column height is 50cm.
60-1200cm can be customized.
Standard manual, the motorized or autofocus
can be customized.
Aluminum working table.
Flat and smooth compact structure.
Flexible processing
Control buttons
Emergency stop:Press it when meets errors,the machine will stop working immediately.
Key switch:Using key switch to control the power of the machine.
Humanized control system, easy to operate, safe and convenient,dust proof design.
JCZ EZCAD2 software.
Latest Software 2.14.16 version.
Compatible with multiple formats and vector file formats, simple operation.
Many different languages offered.
Fitting parts, foot pedal, goggles
Glass cutting drilling laser engraving machine Parameters
| Fiberlaser source | MOPA M8 |
| Power output | >100W |
| BeamQuality M2 | <1.4 |
| Maximum Pulse Energy | 0.58mJ@12ns |
| Main board and control software | Genuine EZCAD(BJJCZ)which supports XP Win⁷/8/1032 and 64bits |
| Wavelength | 1064nm |
| Max positioning speed | 8000mm/s |
| MarkingArea | 70×70/110×110/150×150/175×175/200×200/300×300mm(optional) |
| Min.Character size | 0.2mm |
| Frequency adjustable range | 1-4000 KHZ |
| Pulse Duration | 6-100NS |
| Out beam diameter | 3+-0.5mm |
| Supplyvoltage | AC 110/220V±10%,50/60Hz |
| Power cable style | According to yourrequest(Asian/European/American standard) |
| Focus | Double red dots positioning |
| Cooling way | water cooling |
| Operation temperature | 0-40℃ |
| CE Certificate | Approved |
We have advantages in customization and also supply a lot optional accessories. please send inquiry to get more details and videos .
More Models
Portable Mobile Type
Portable Mini Type
Desktop Split Type
Table Type
Desktop Enclosed Type
Full Enclosed Type
Online Flying Type
More Customized Types
Optional Accessories
Smoke exhaust fan
Fume extractor
Water chiller

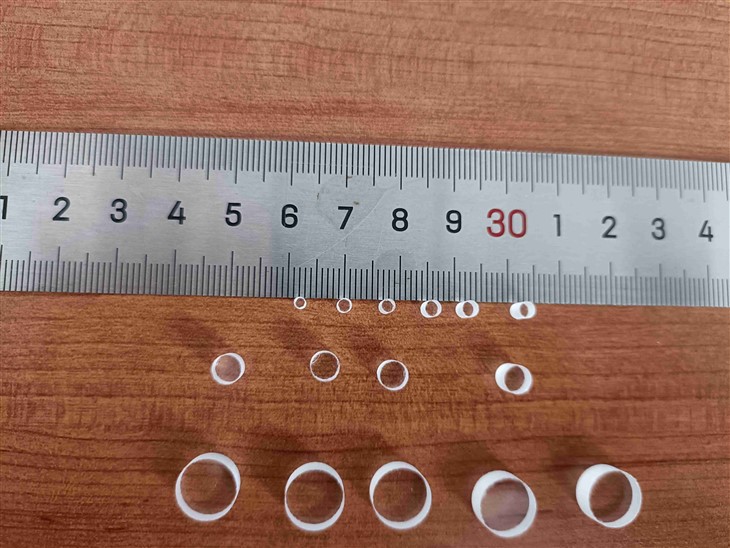

Samples:
