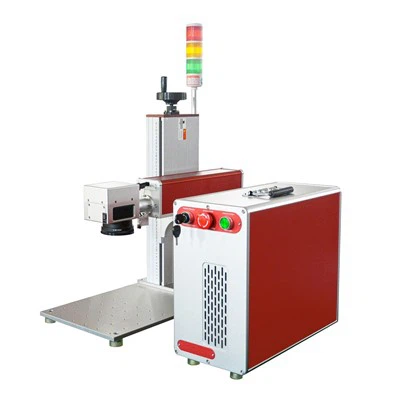

Enclosed Laser Engraving Cutting Machine
The Enclosed Laser Engraving Cutting Machine is a high-precision industrial laser system designed for safe, efficient, and high-quality engraving and marking applications.Can engrave a wide range of materials, including:Metals: Stainless steel, aluminum, brass, copper, gold, silver.Plastics: ABS, PVC, acrylic, polycarbonate.Non-metals: Wood, leather, ceramic, glass.
Description
Enclosed Laser Engraving Cutting Machine Introduction
The Enclosed Laser Engraving Cutting Machine is a high-precision industrial laser system designed for safe, efficient, and high-quality engraving and marking applications.
With its enclosed design, the machine ensures operator safety while maintaining a clean and controlled workspace.
Equipped with advanced laser technology and user-friendly features, it is ideal for a wide range of materials and industries.
Enclosed Laser Engraving Cutting Machine Application
The machine can engrave a wide range of materials, including:
- Metals: Stainless steel, aluminum, brass, copper, gold, silver.
- Plastics: ABS, PVC, acrylic, polycarbonate.
- Non-metals: Wood, leather, ceramic, glass.
Industrial Marking: Barcodes, QR codes, logos, and serial numbers.
Jewelry Engraving: Custom designs on gold, silver, and platinum.
Electronic Components: Precise markings for traceability.
Medical Devices: Permanent and hygienic markings on surgical tools.
Enclosed Laser Engraving Machine Advantages
Safety: Fully enclosed design ensures maximum safety for operators.
Precision: High-quality laser source delivers sharp and detailed markings.
Versatility: Suitable for a wide range of materials and applications.
Productivity: High-speed marking with minimal setup time enhances efficiency.
Durability: Robust construction and long-lasting laser source reduce downtime.
Environmentally Friendly: Energy-efficient operation with minimal waste.
Enclosed Laser Engraving Machine Features
why choose us
'lt is awesome to work with Creative. amazingy organized,easy to communicate with. responsive with next iterations,and beautiful work.
Enclosed Design for Safety
Protects operators from laser radiation.
Minimizes dust, fumes, and debris generated during the engraving process.
Ensures compliance with safety regulations.
Integrated Monitoring System
Dual monitor setup for controlling the laser software and monitoring the engraving process in real time.
Versatile Applications
Compatible with a wide range of materials such as stainless steel, aluminum, gold, silver, ABS, PVC, acrylic, and more.
Optional Add-ons
Rotary attachment for engraving cylindrical objects.
Fume extractor for enhanced environmental safety.
More different enclosed cabinets for option:
Enclosed laser marker Main Parts
Fiber Laser source.
Original Raycus/JPT/ IPG/Max optional.
Stable working lifetime up to 100,000+ hours.
High Speed galvo scanner laser head.
Original Scanlab/sino-galvo/JCZ/ZBTK optional.
Fast speed and high accuracy.
F-theta lens
Best brand "Wavelength"
Working area 50*50mm-300*300mm optional
Beijing JCZEZCAD2 control card
Genuine EzCAD control system compatible with windows system.
User-friendly interface and high stability.
Easy operation.
Double red pointers.
It can help user to adjust focal
length more convenient and easier.
Meanwell power supply with high precision.
The function of door opening protection, the laser will not work when the door is opened.
Computer installed.
Ready to use the machine once machine arrived. Easy for marking operation.
Control buttons
Emergency stop. Key switch for main power, red light. Also auto focus optional.
Humanized control system, easy to operate, safe and convenient,dust proof design.
JCZ EZCAD2 software.
Latest Software 2.14.16 version.
Compatible with multiple formats and vector file formats, simple operation.
Many different languages offered.
Enclosed laser marker Parameters
| Laser Type | Enclosed Type Fiber laser |
| Laser source | Raycus/Max/JPT/IPG |
| Repetition Frequency Range(KHZ) | 20-100 |
| Output Power Stability | <3% |
| Beam Quality | 7±1 |
| Pulse width(ns) | 120-150 |
| Max.Single Pulse Energy(mJ) | 0.67 |
| Delivery Cable Length(m) | 3(others foroption) |
| Power Stability(8h) | <±1%ms |
| Marking Size | 110mm*110mm,150mm*150mm,200*200mm(others for optinal) |
| Marking Speed | 0-12000mm/s |
| Marking depth/Roman Type,Character Height 1mm |
0.01-0.5mm(Depending onthe material) |
| Repeatability | ±0.003mm |
| System Protection Rating | IP54 |
| Cooling | Air Cooling |
| Power Supply | 220V±5%,50Hz±5%Single-phaseAC power suppl |
We have advantages in customization.
please send inquiry to get more details and videos .
Fiber Laser Marking Machine More Customized Types
Enclosed laser marker Samples:
laser Marking Machine Packing & Shipping
Enclosed laser marker FAQ
Let me know if you'd like more details or specific troubleshooting tips!
